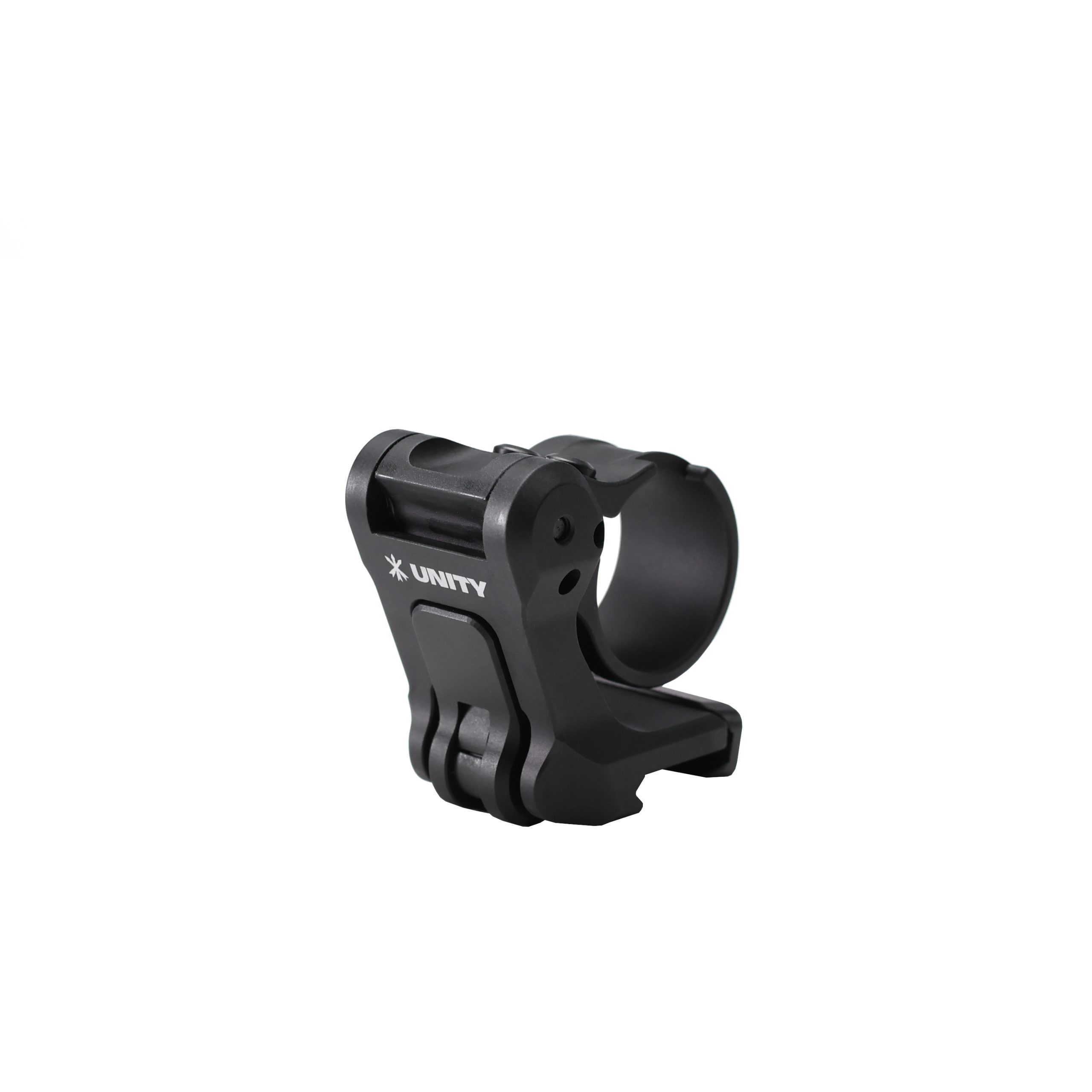

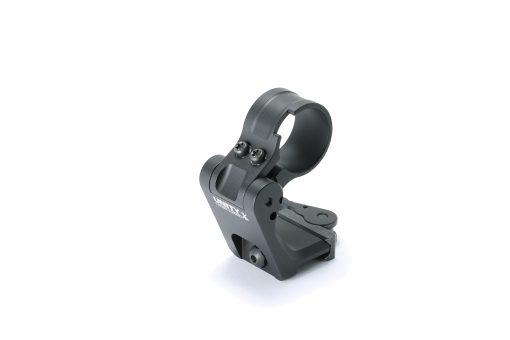

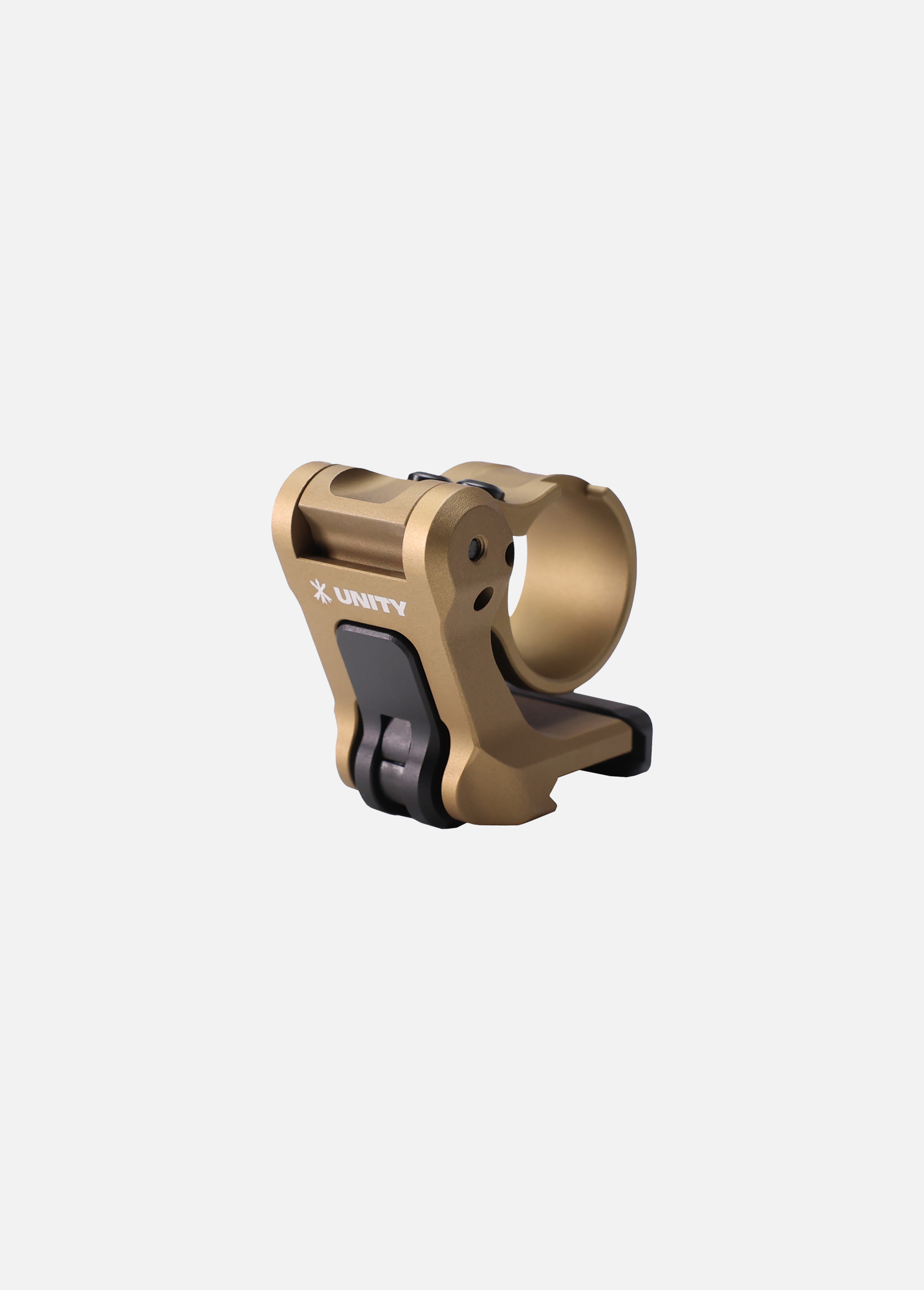

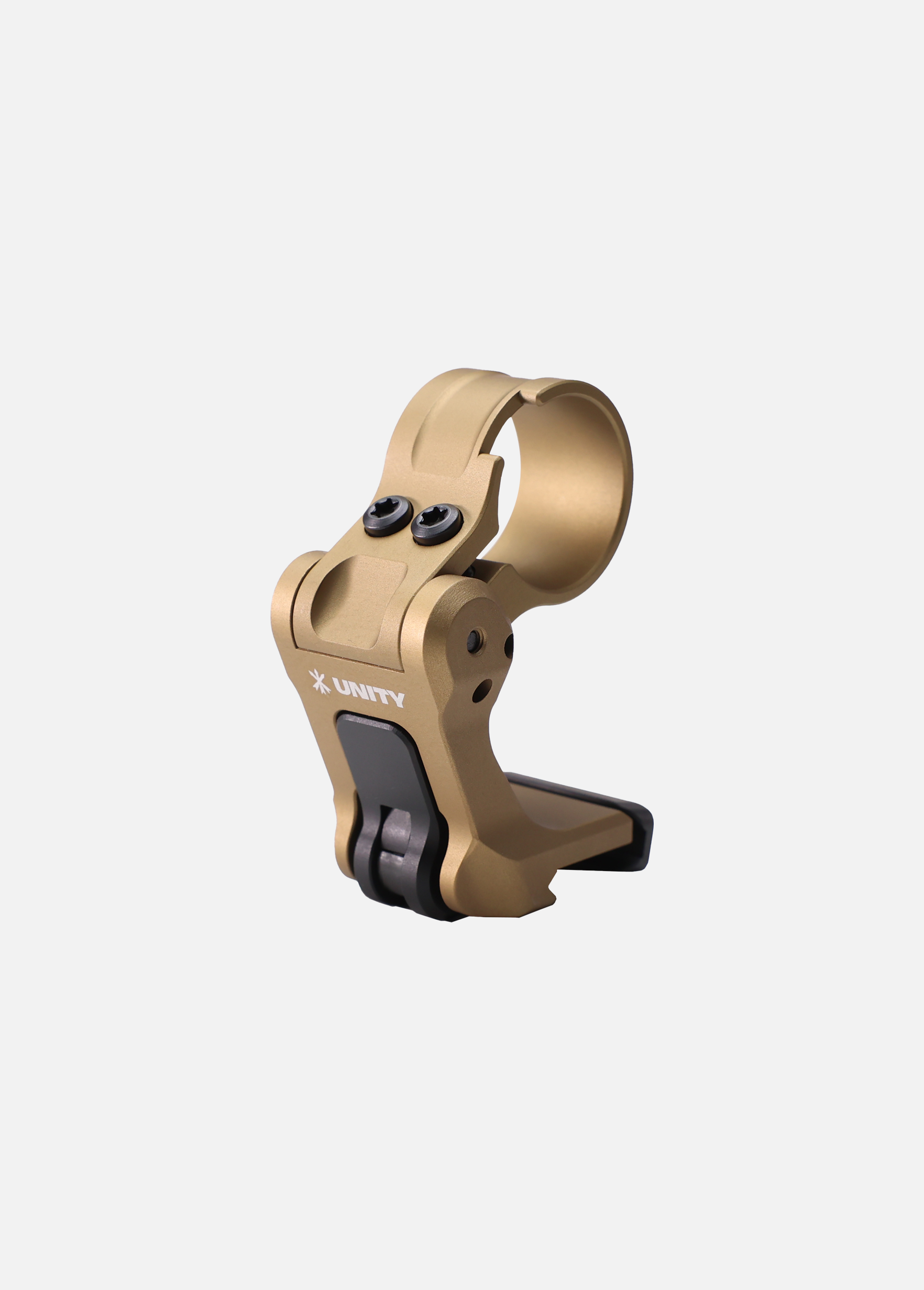

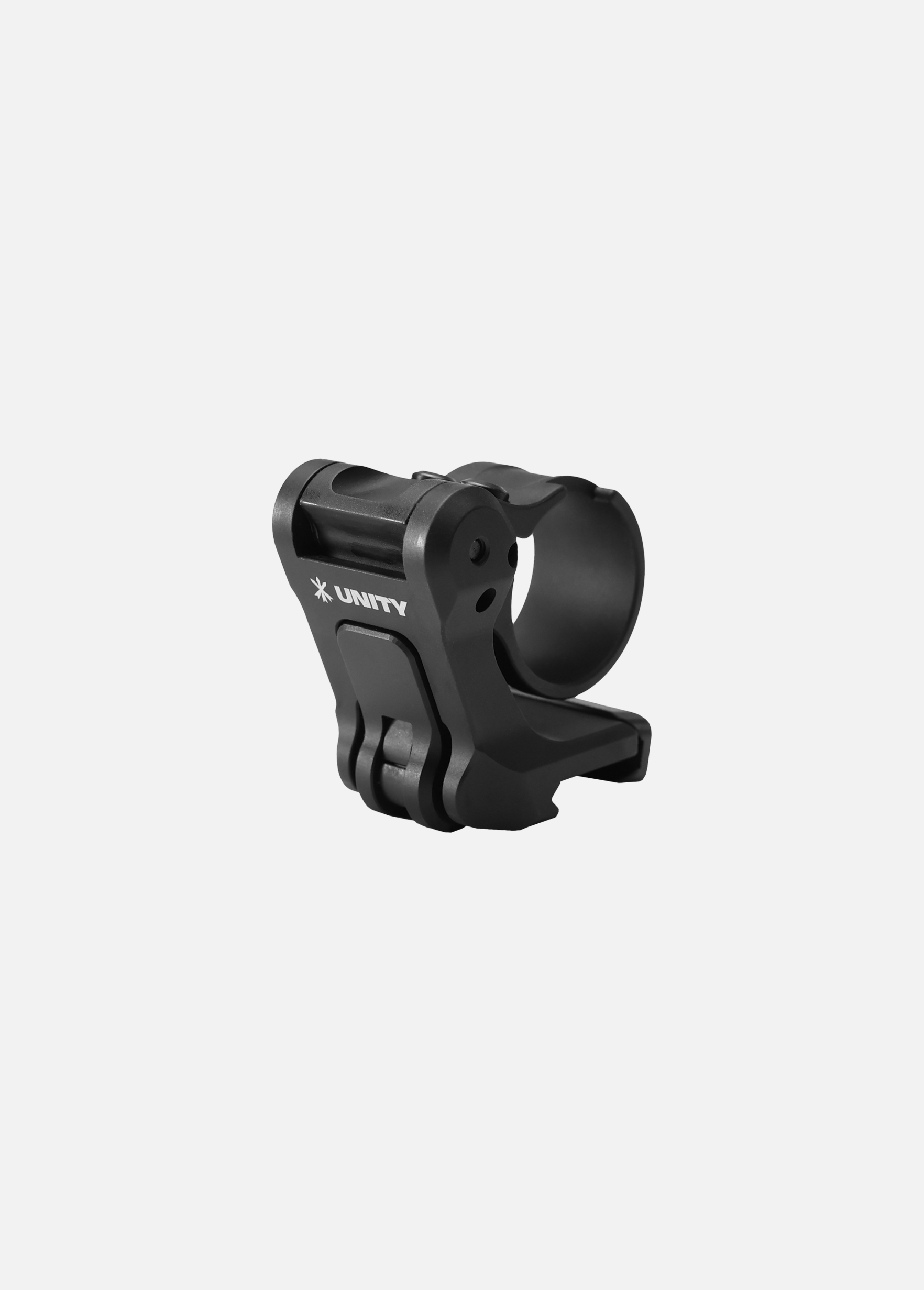

FAST™ FTC 30MM

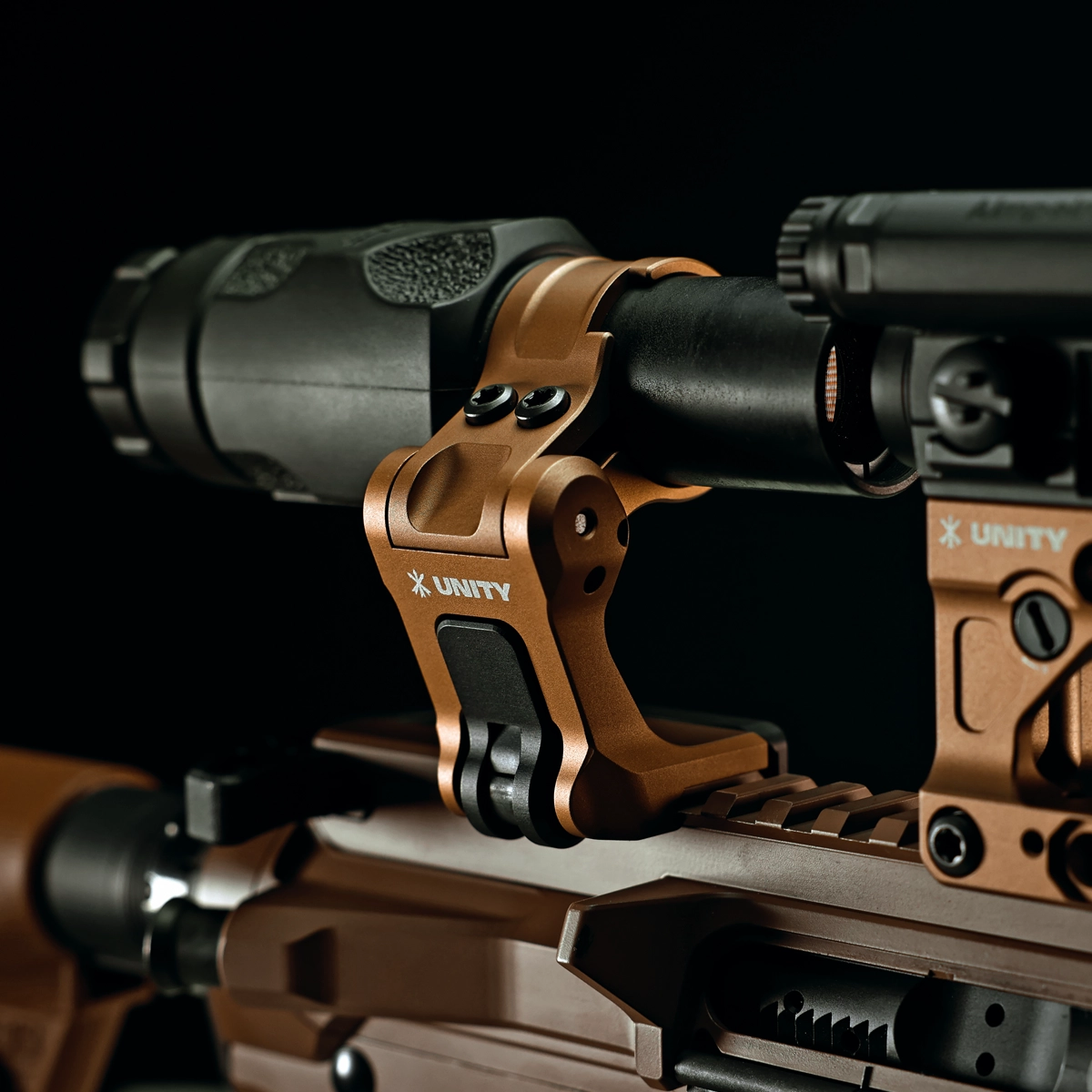

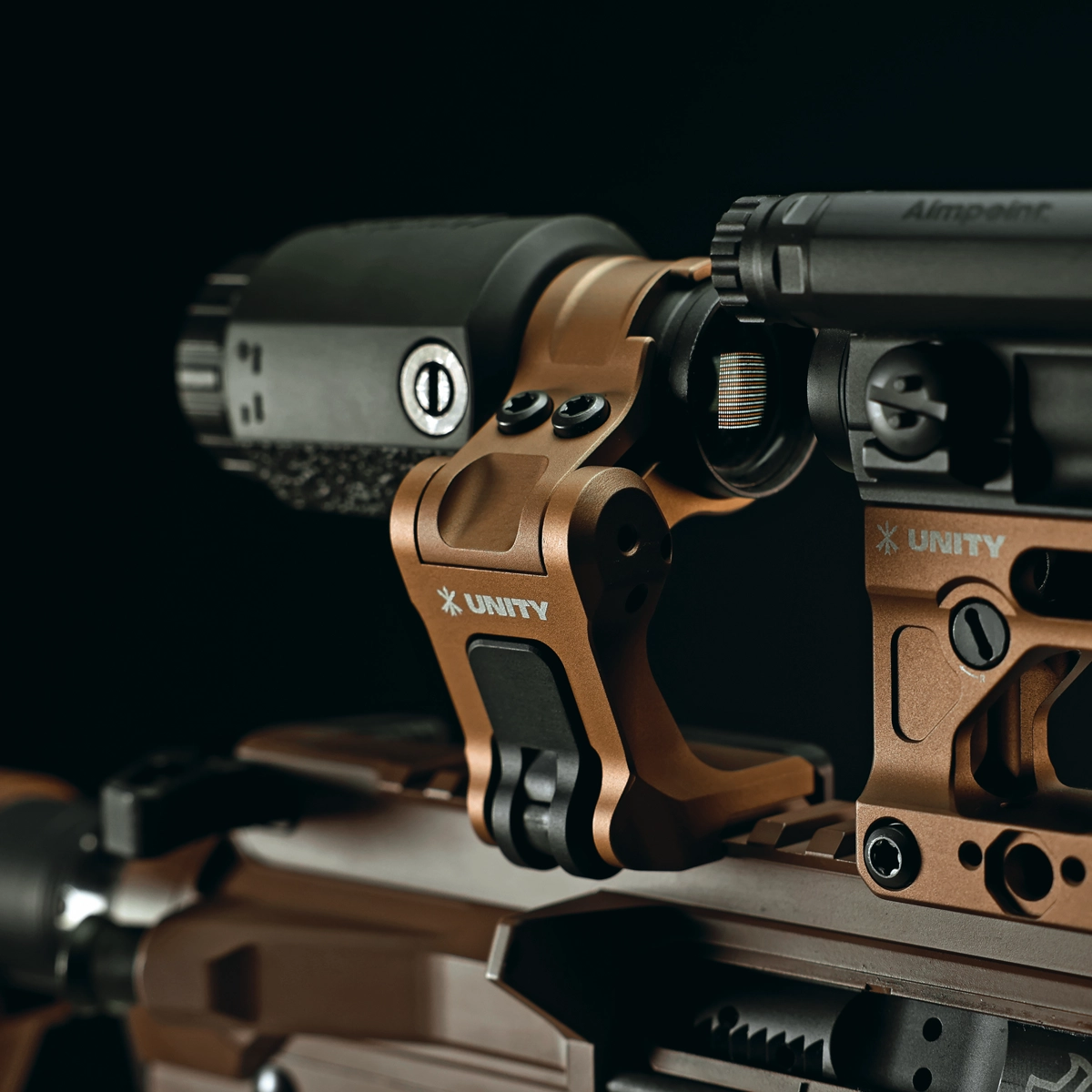

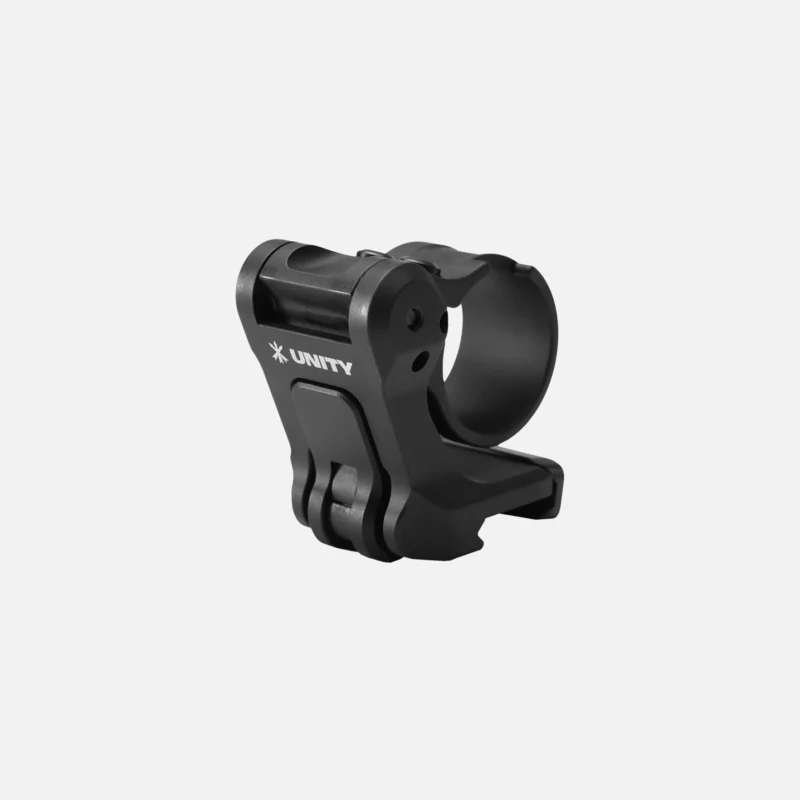

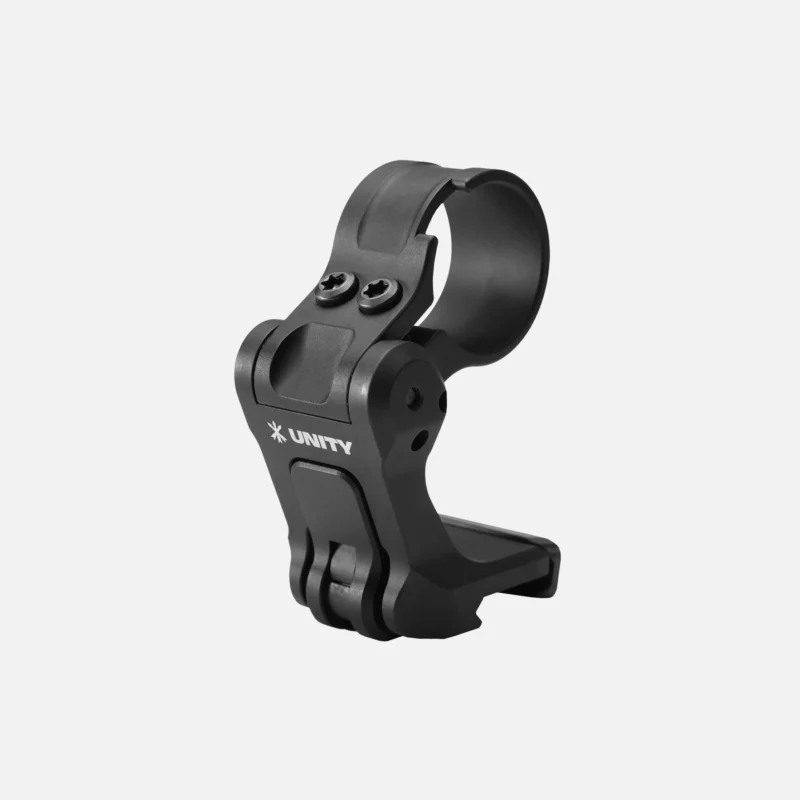

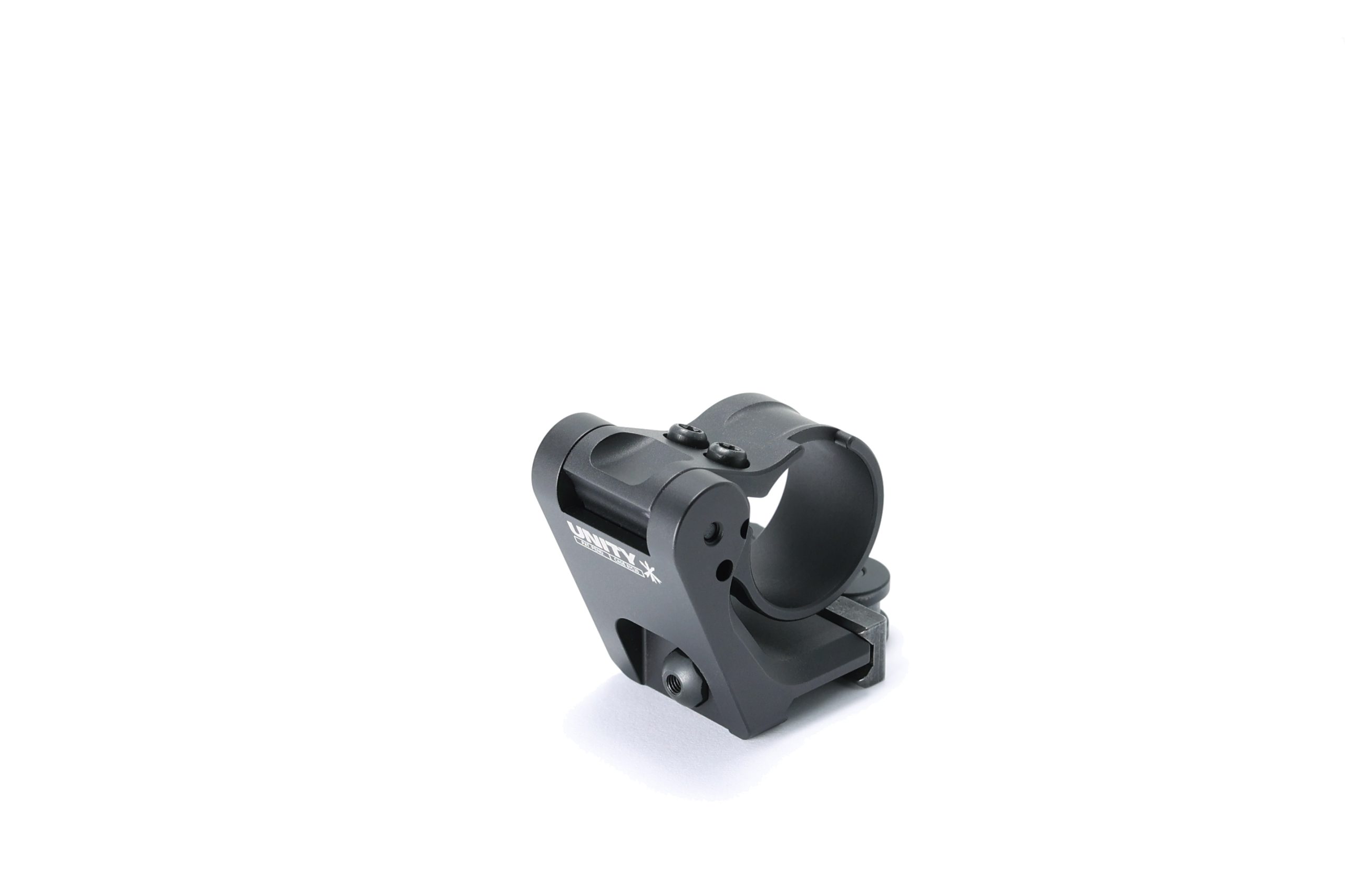

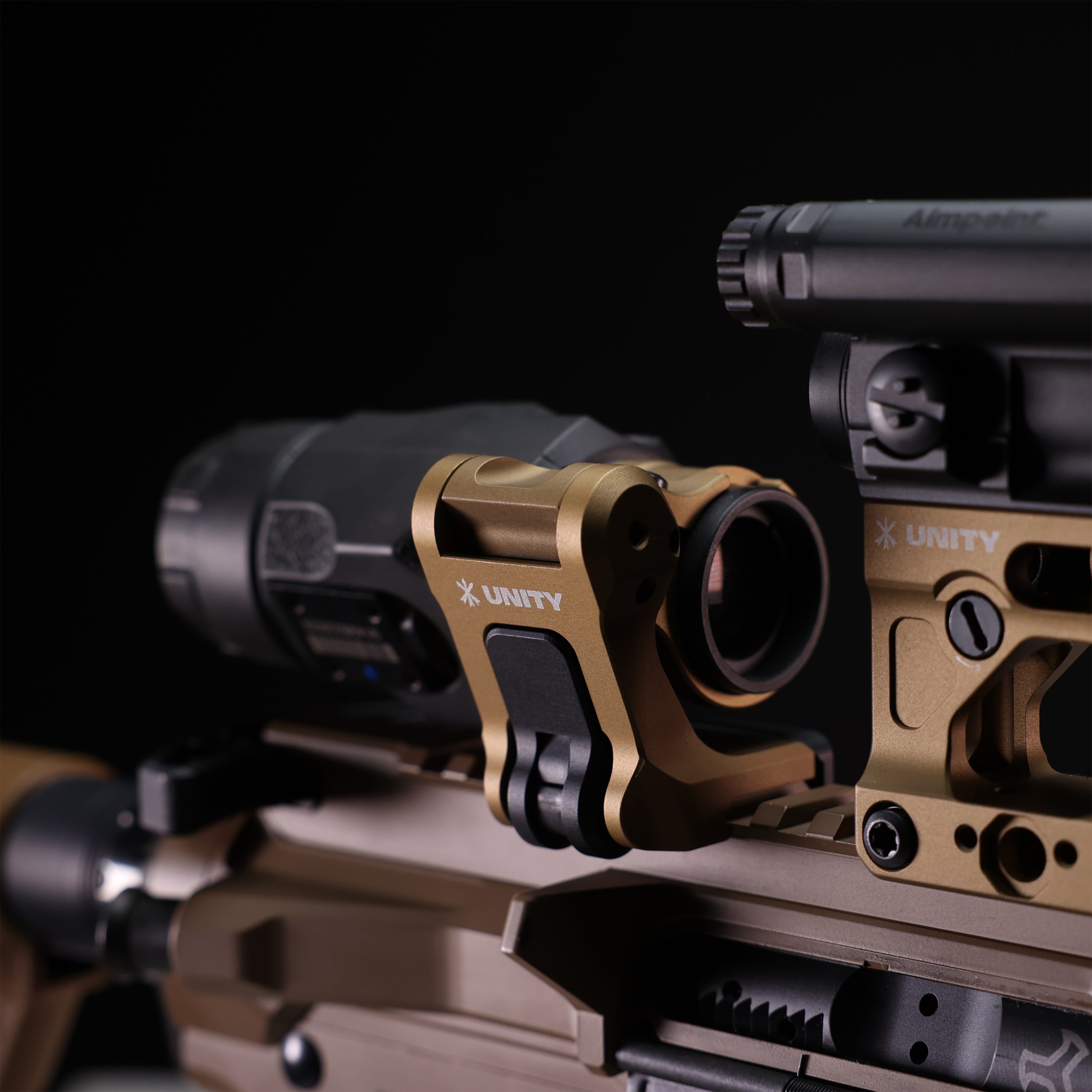

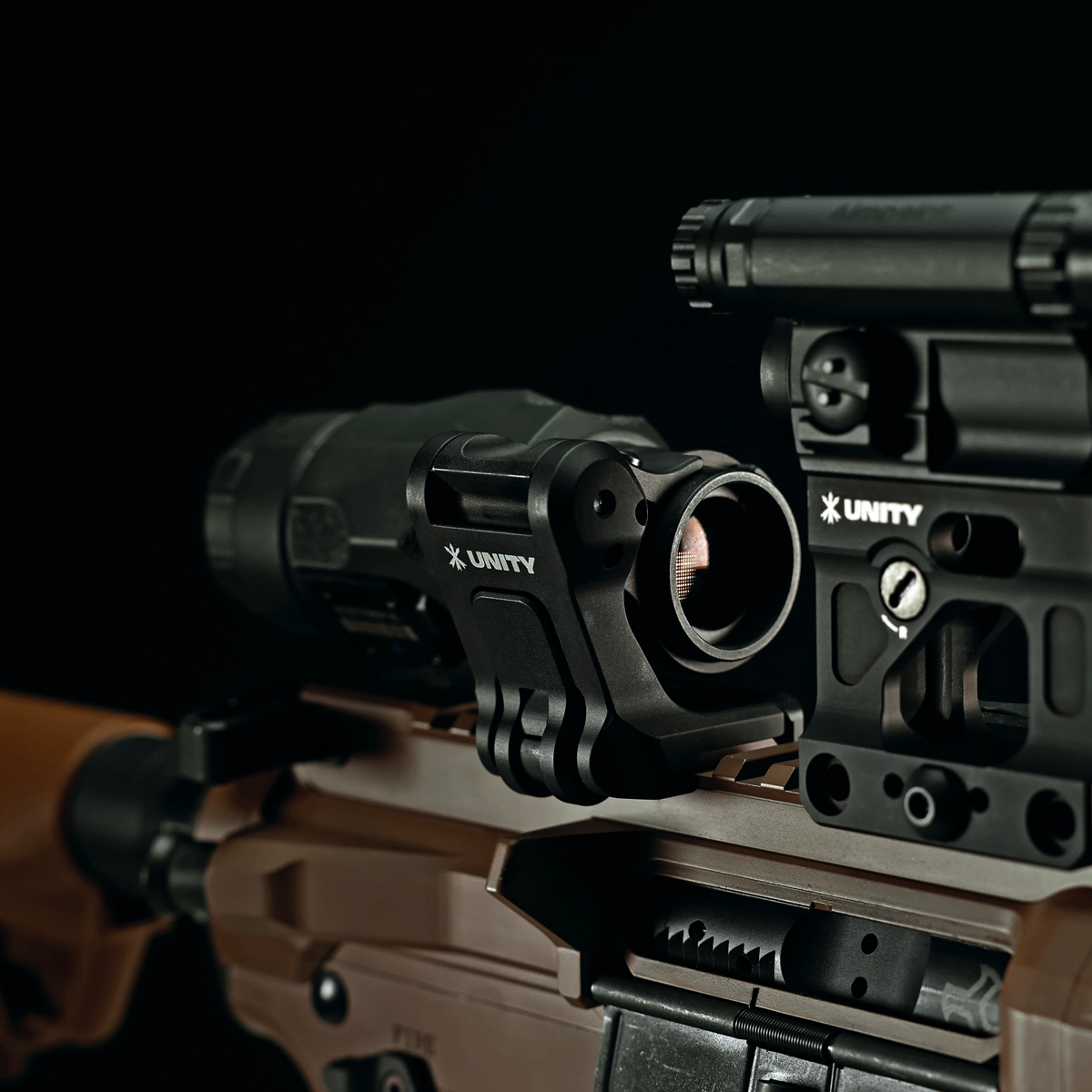

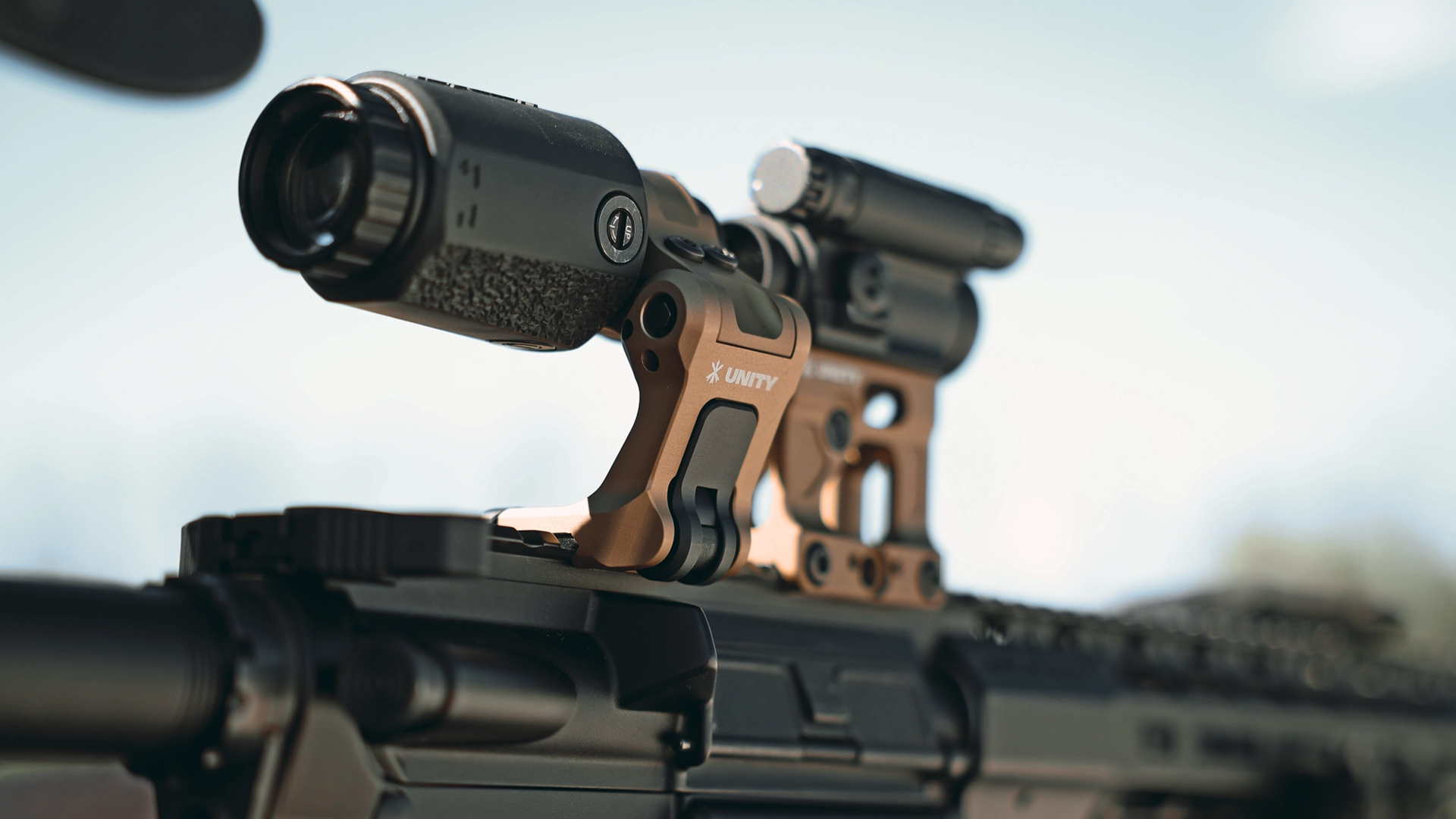

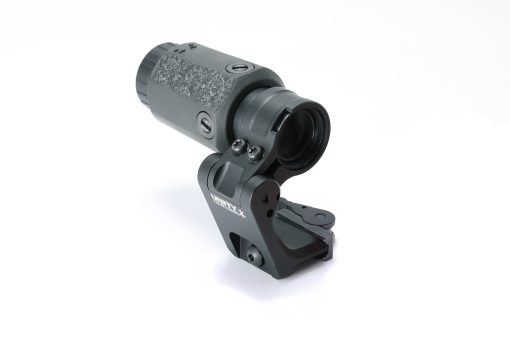

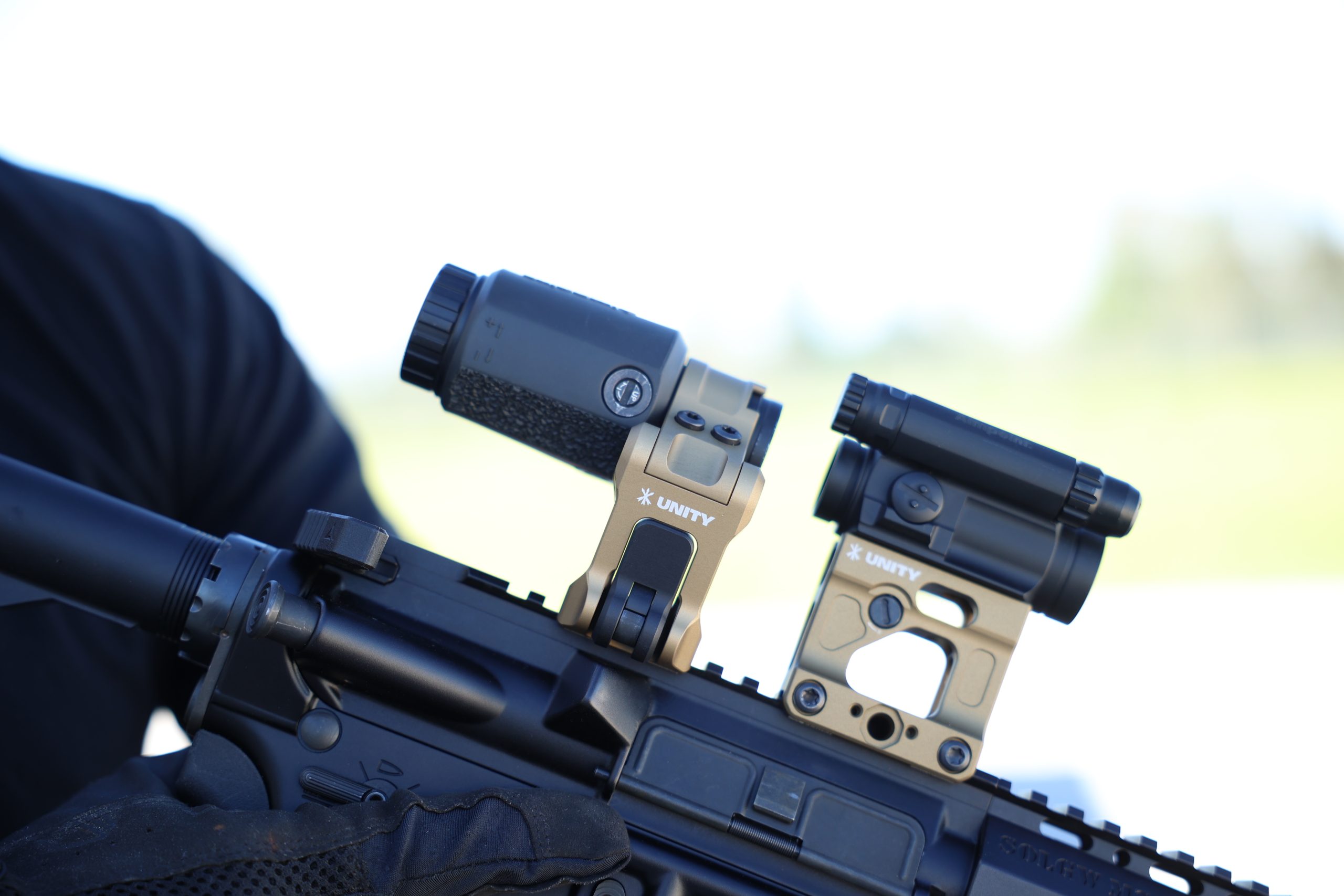

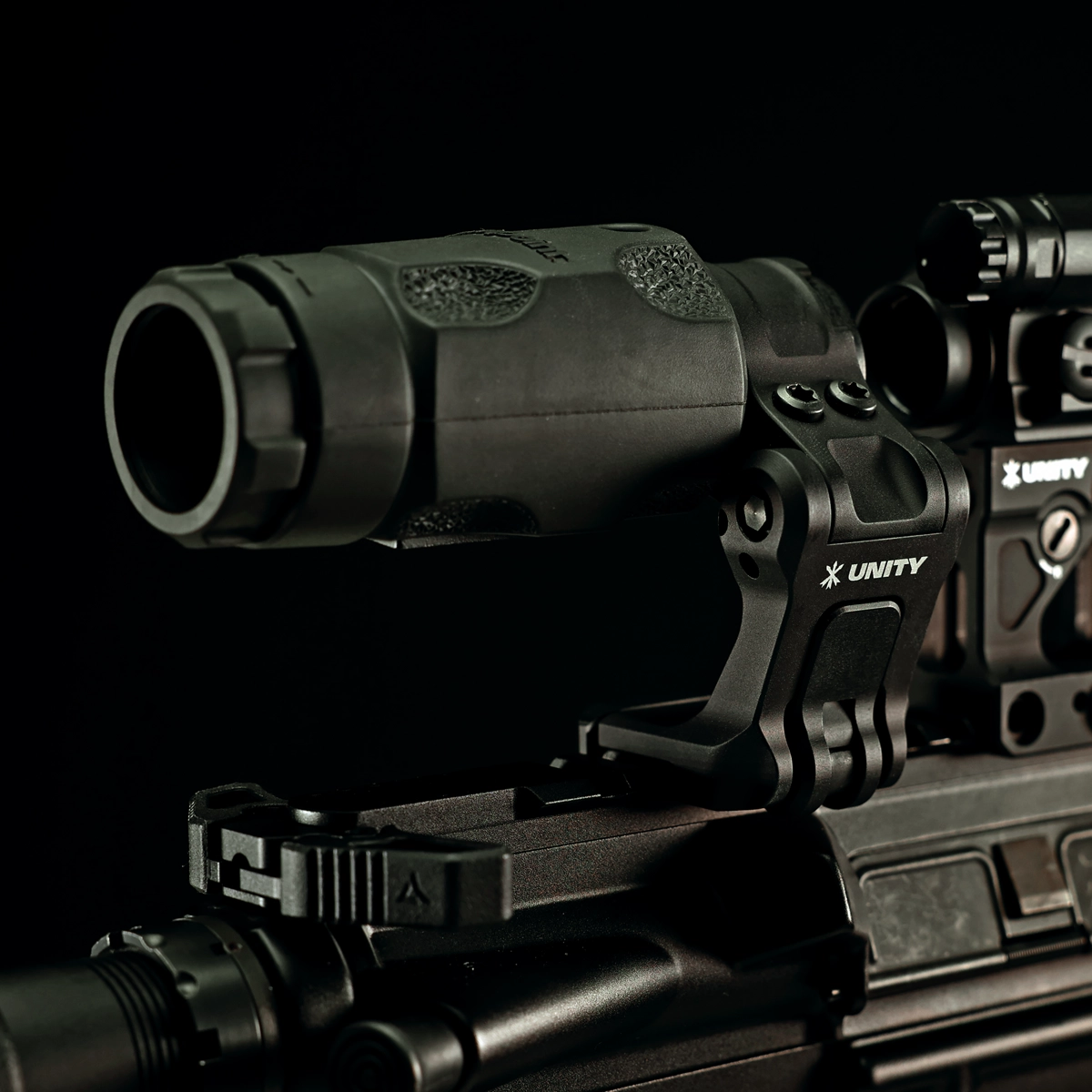

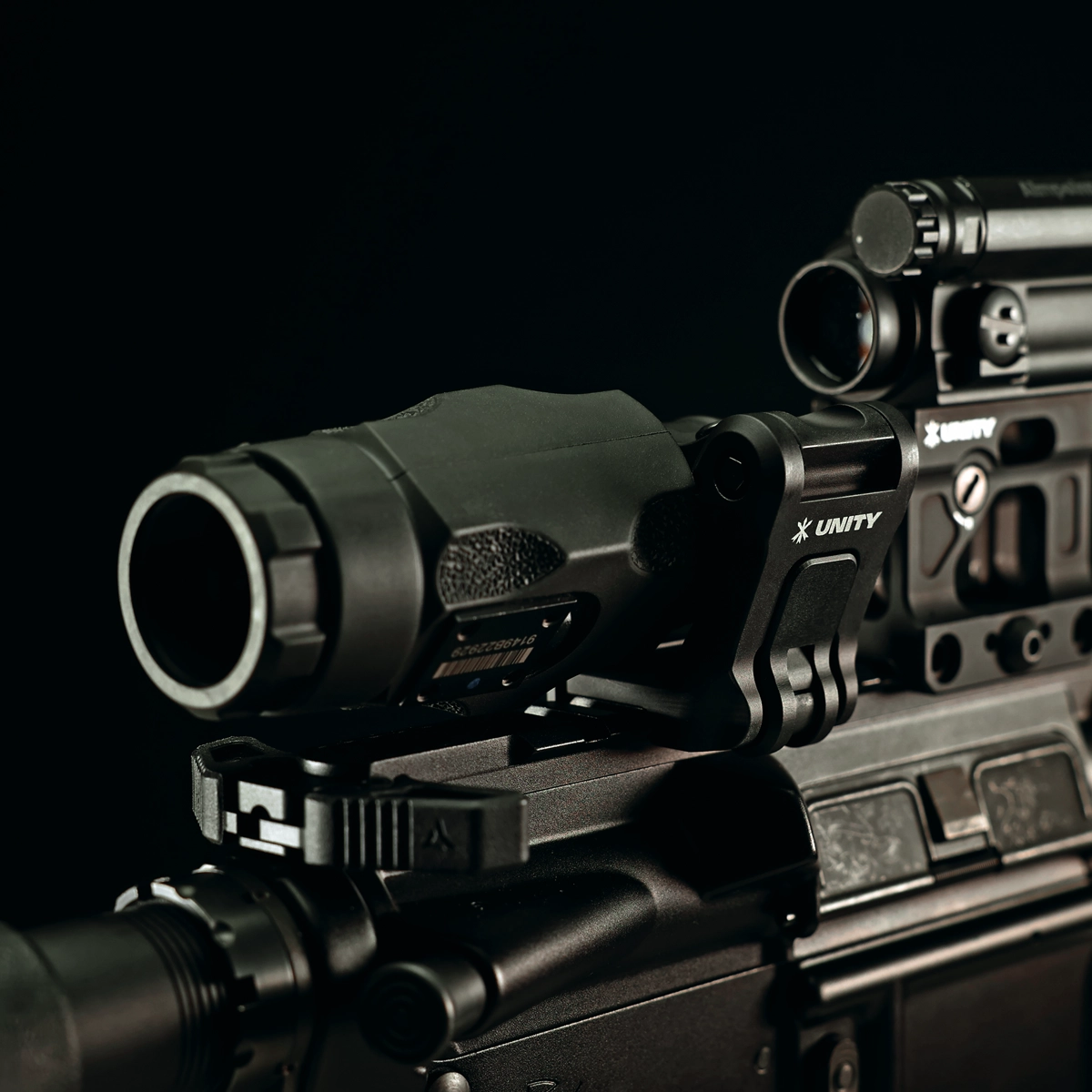

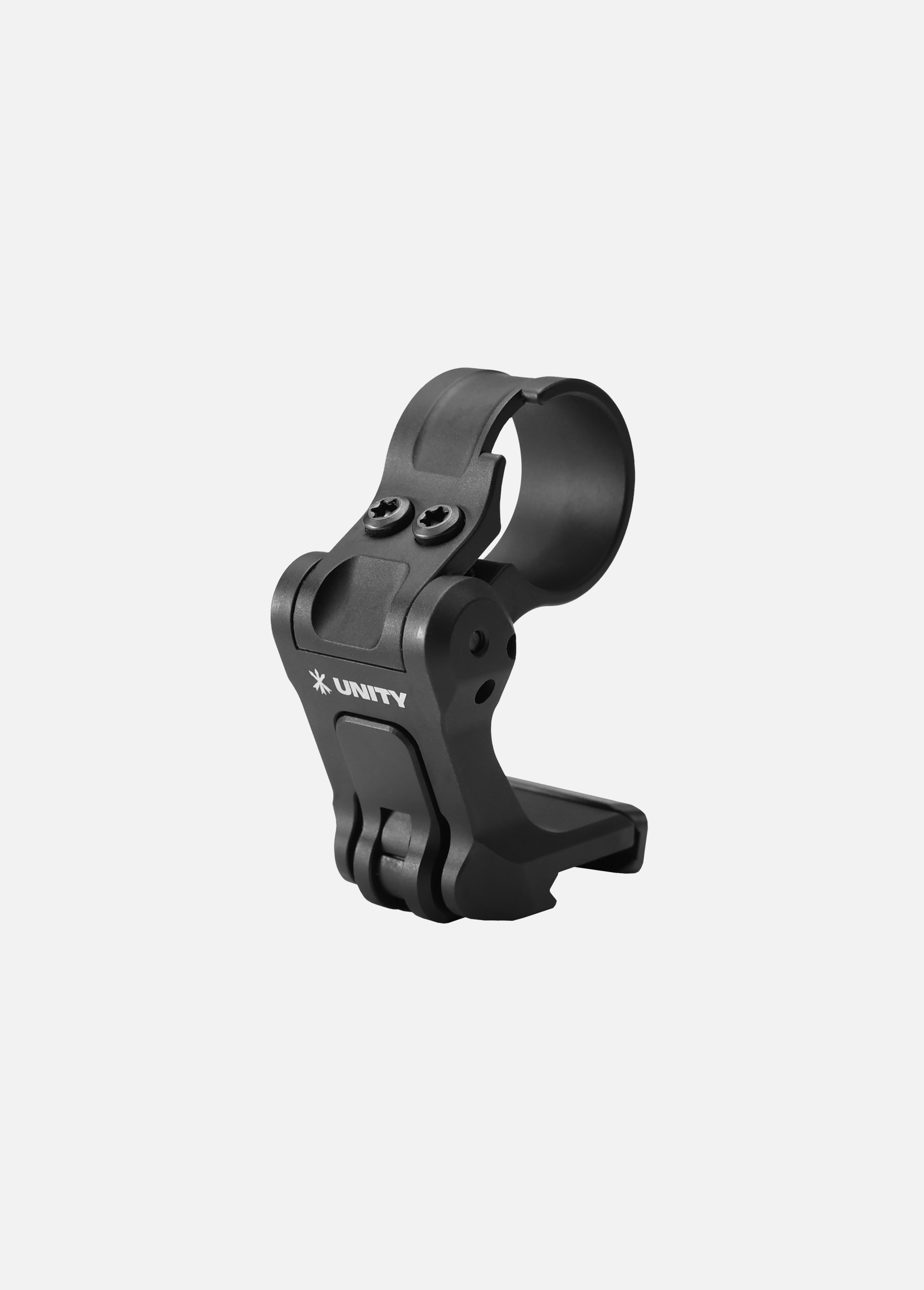

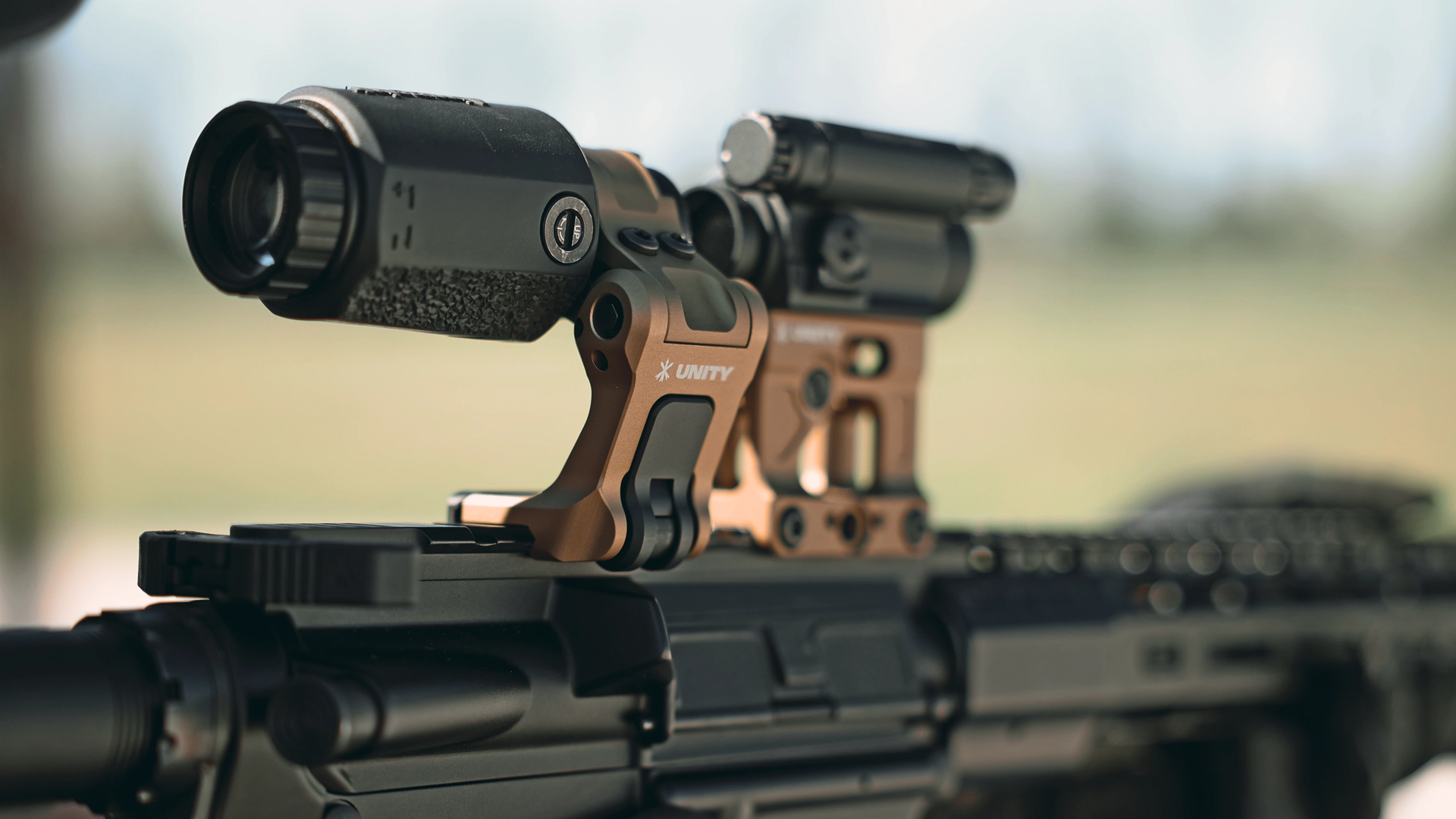

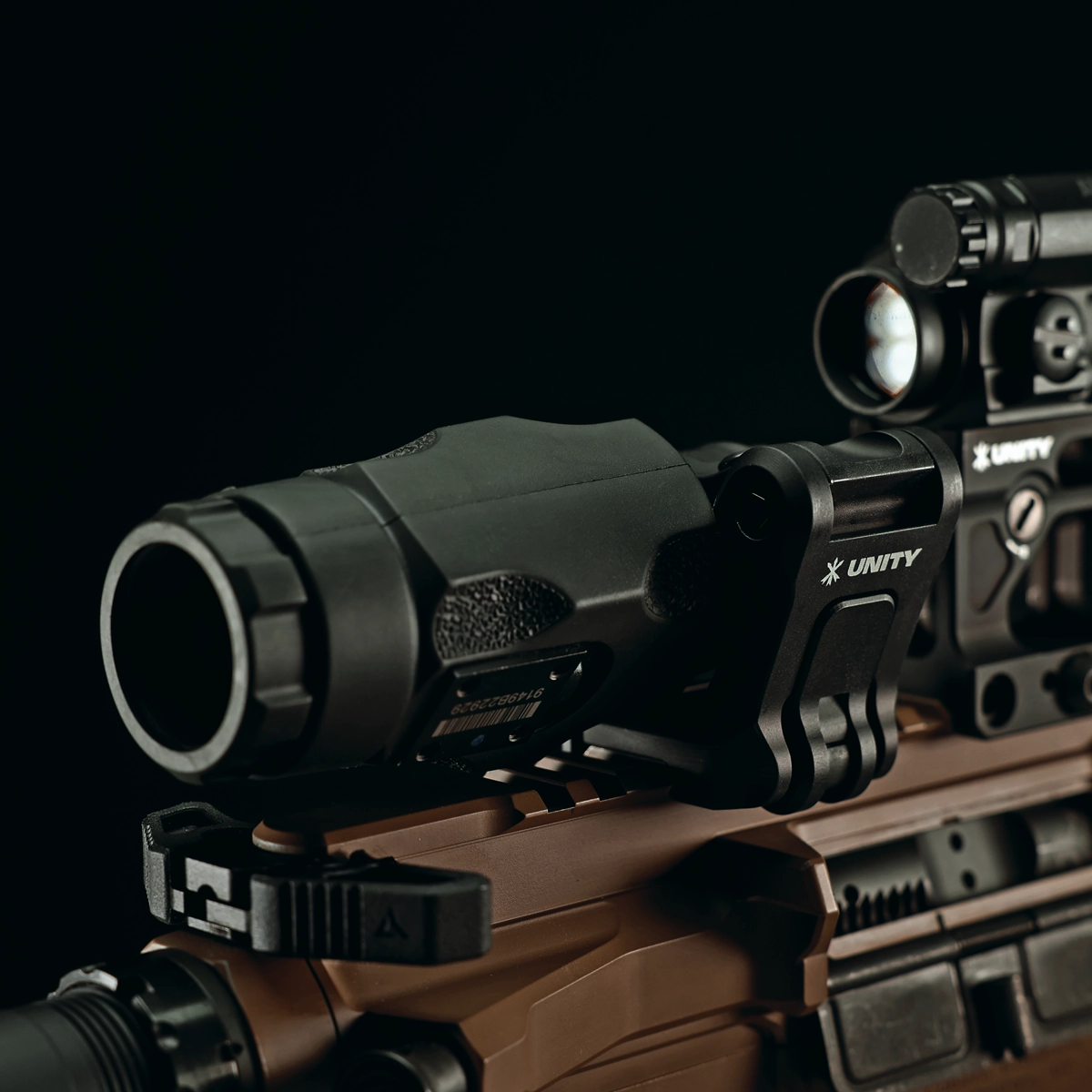

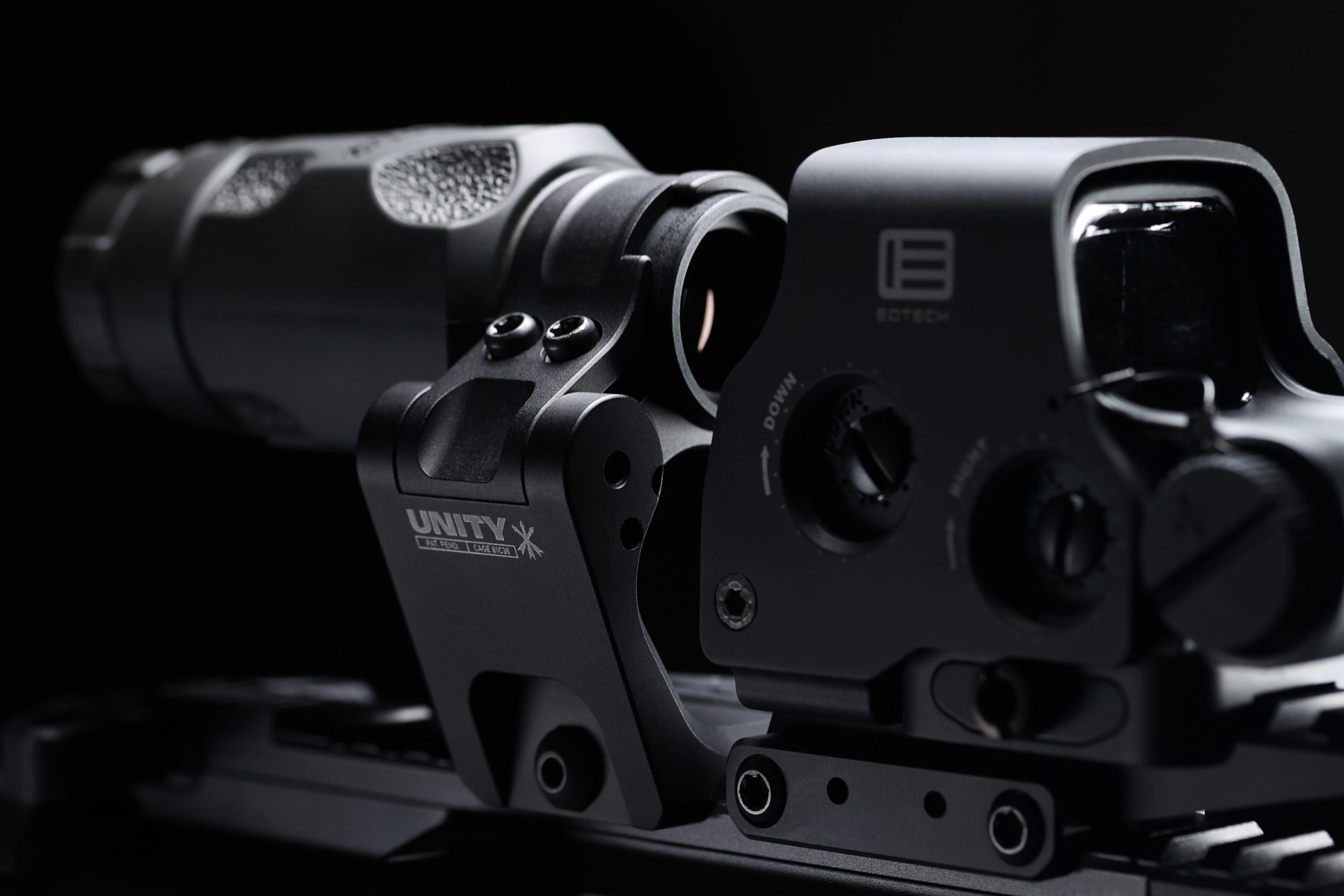

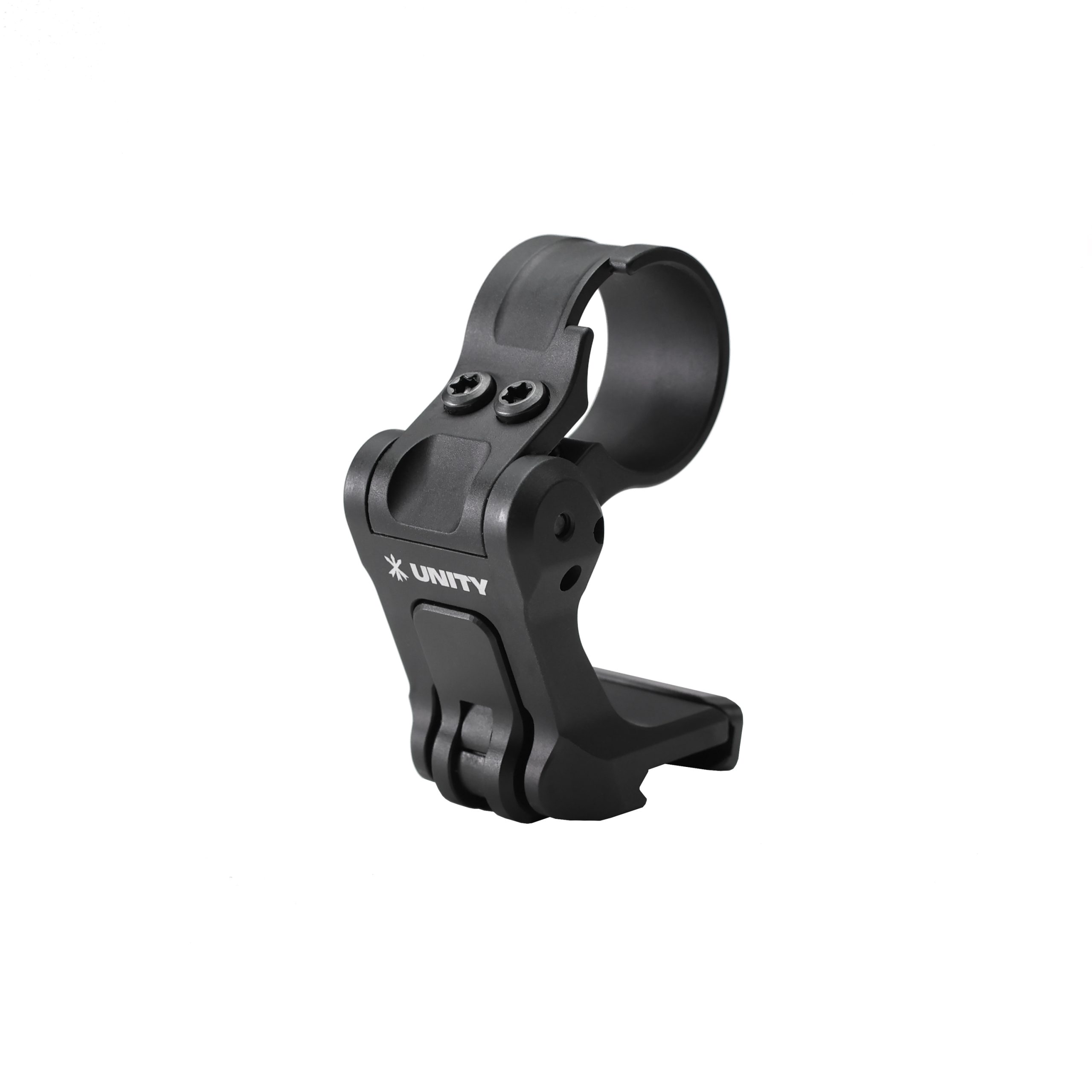

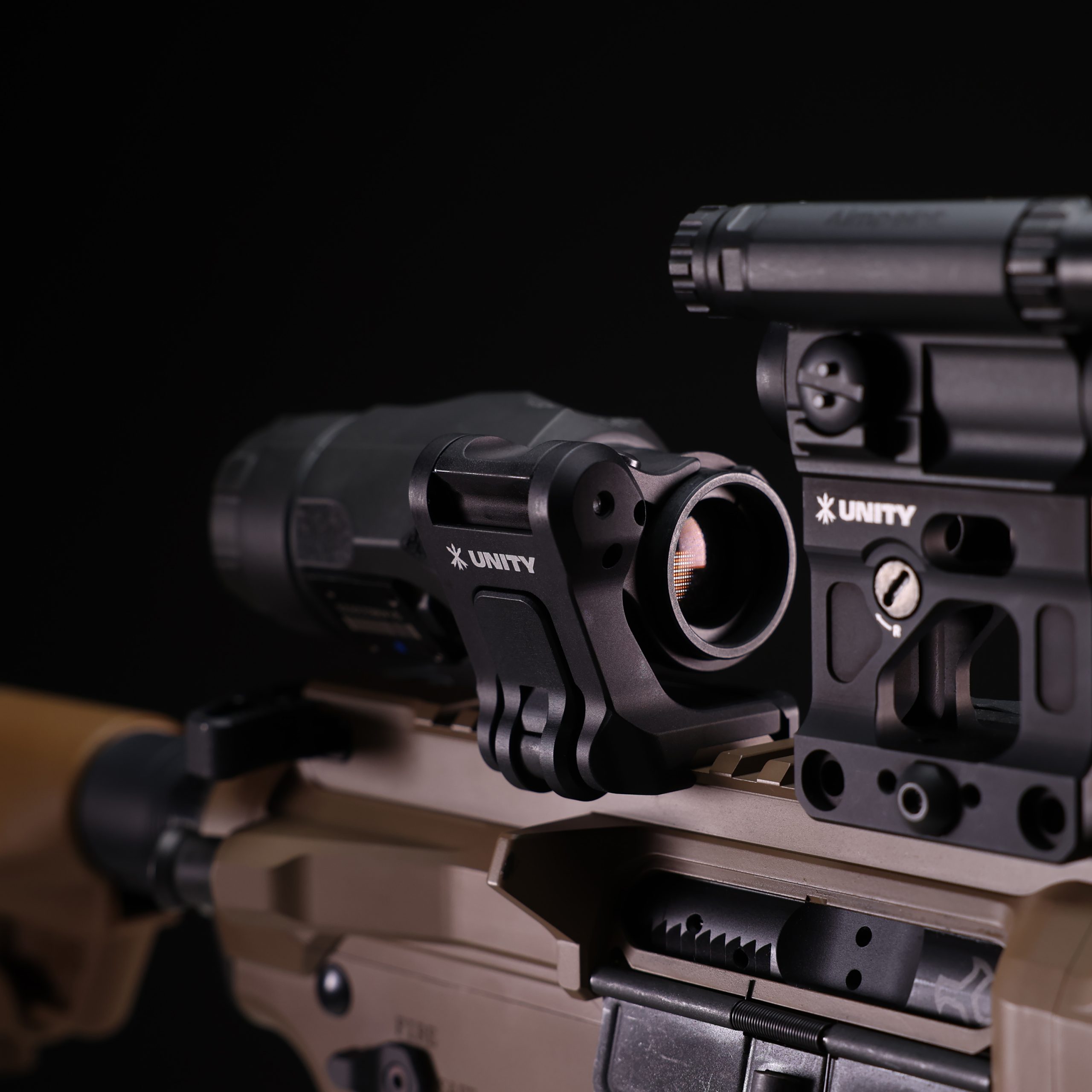

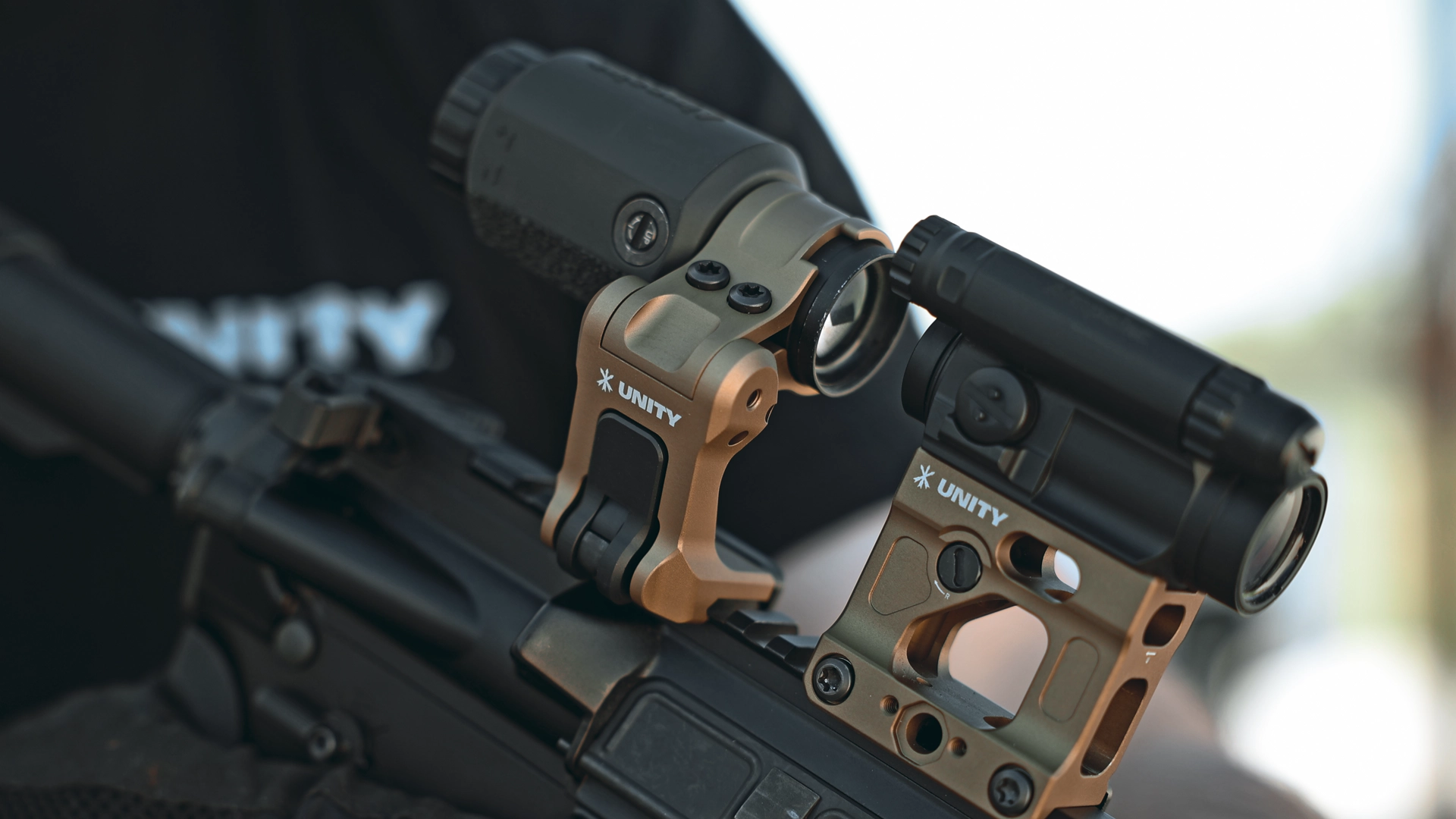

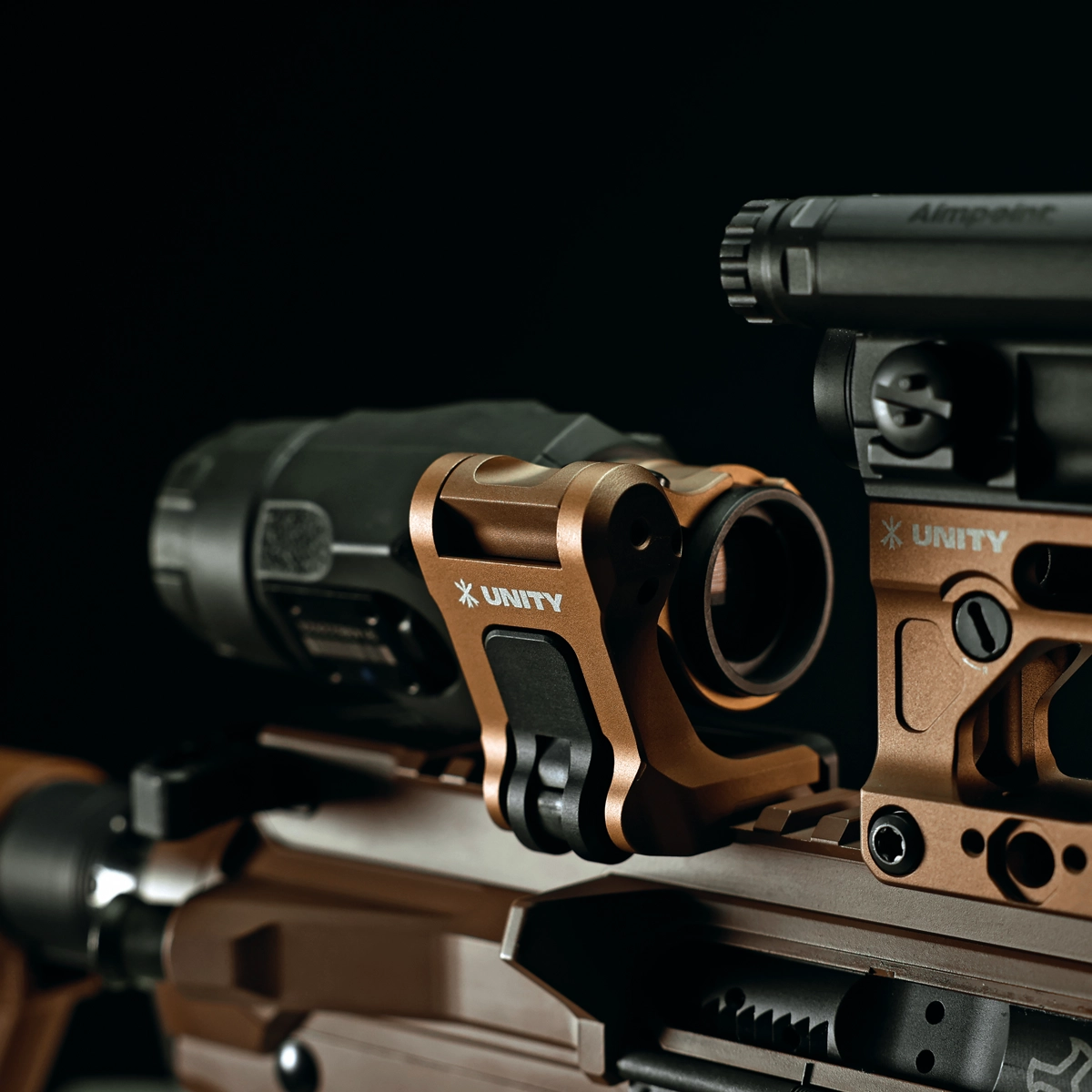

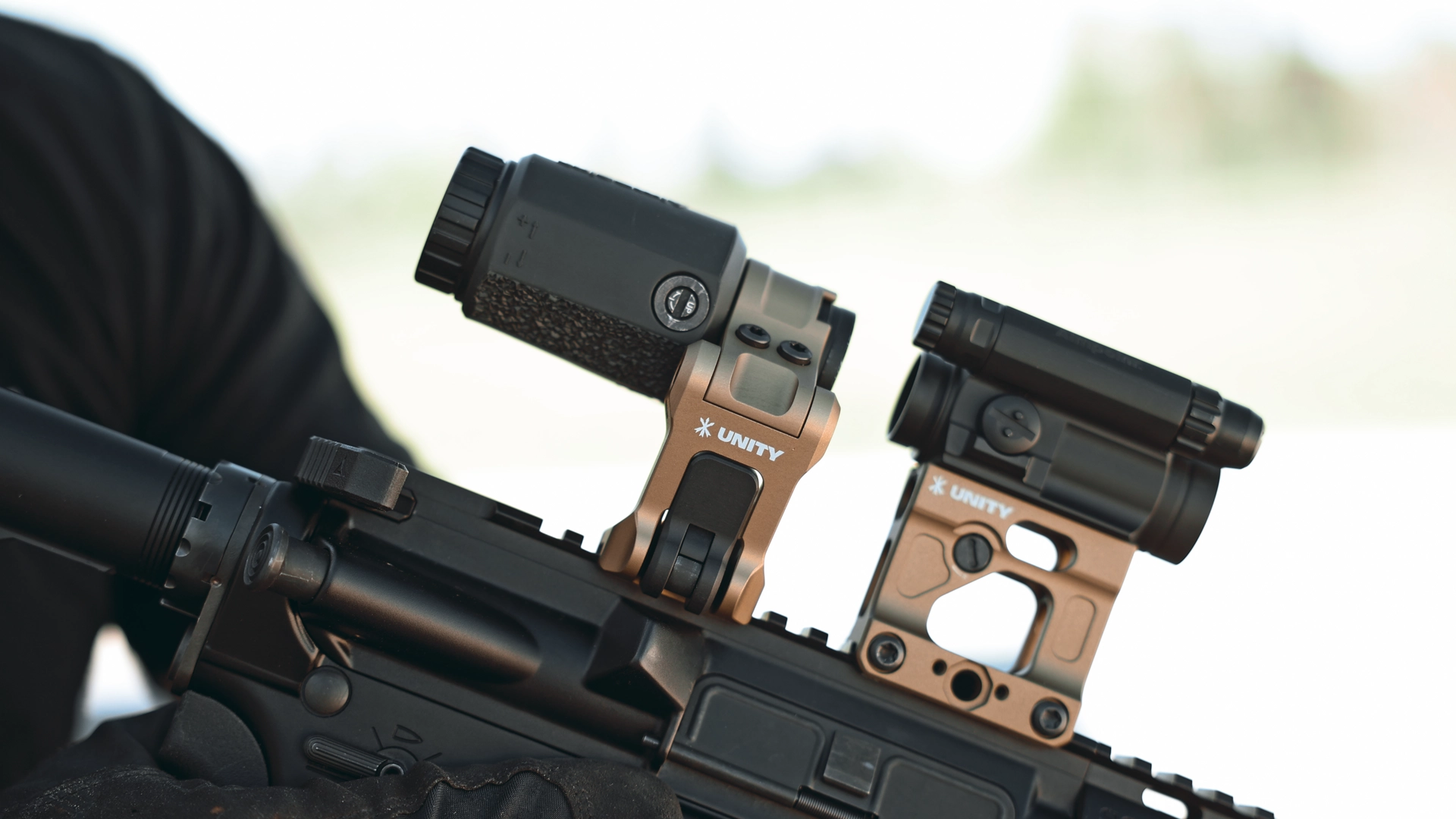

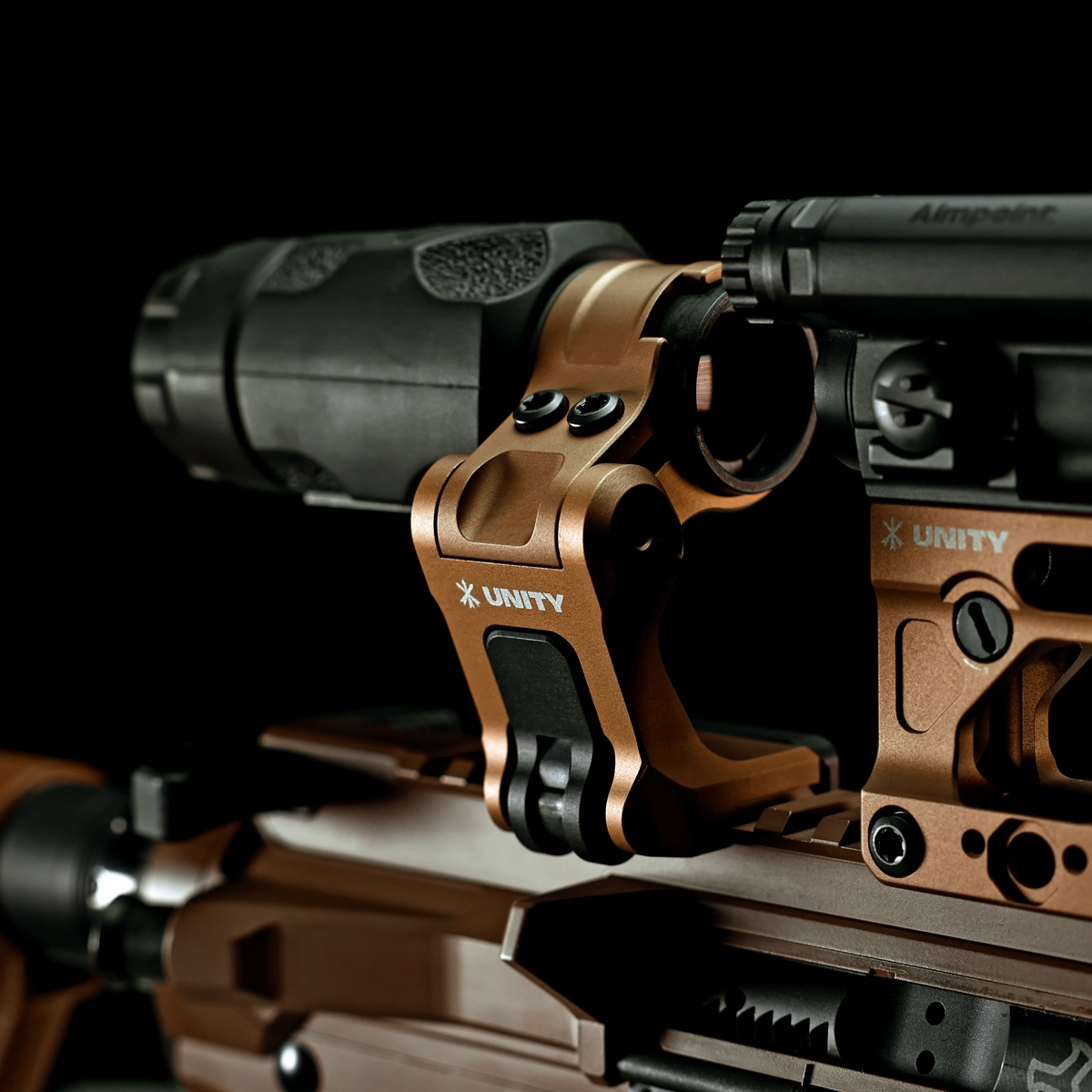

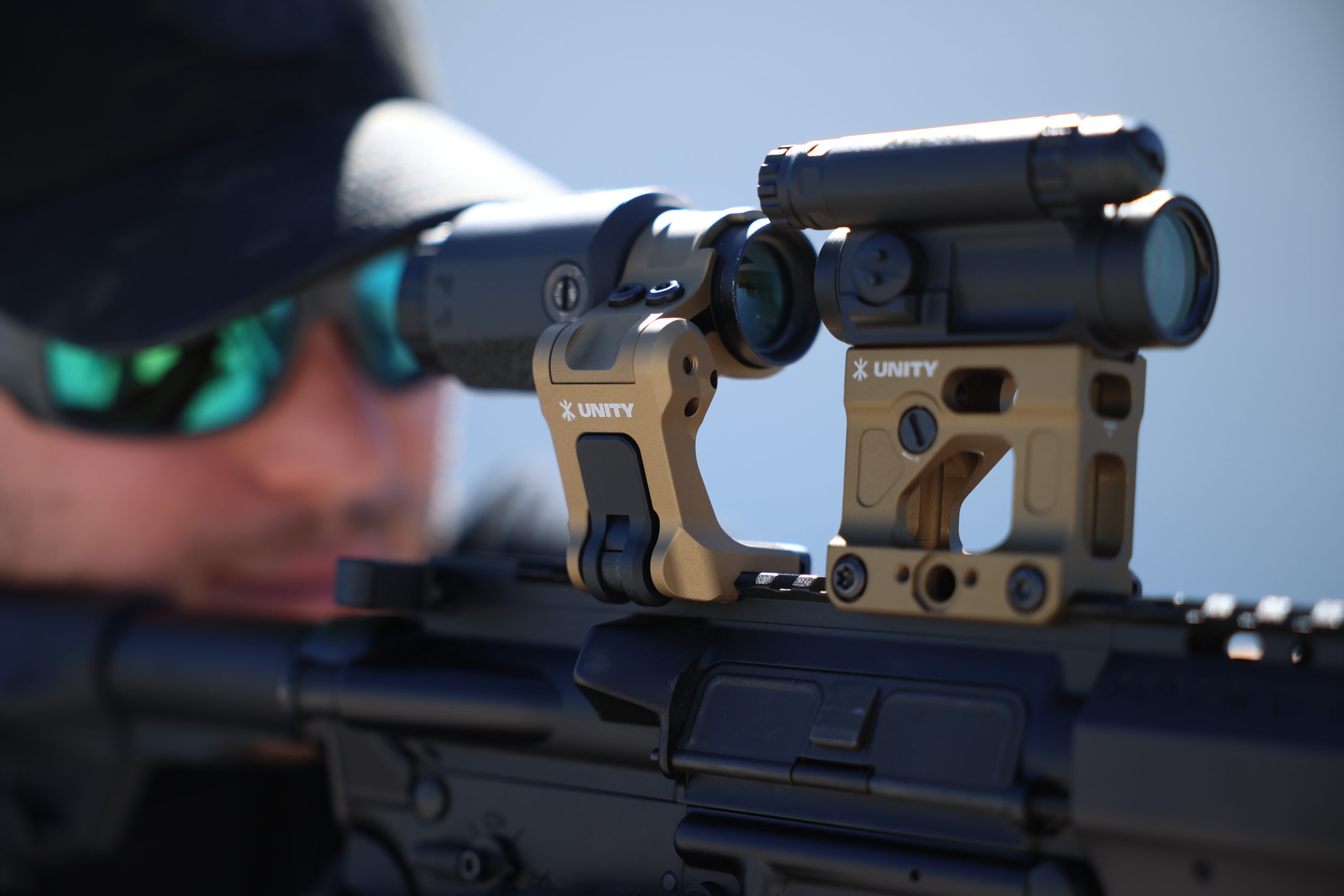

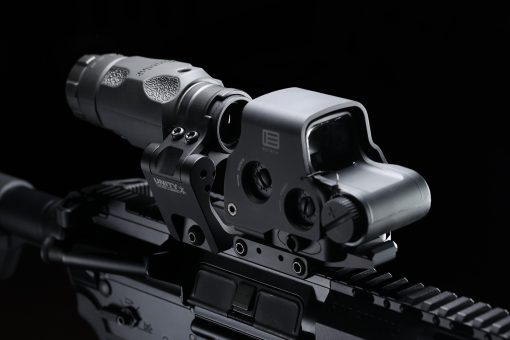

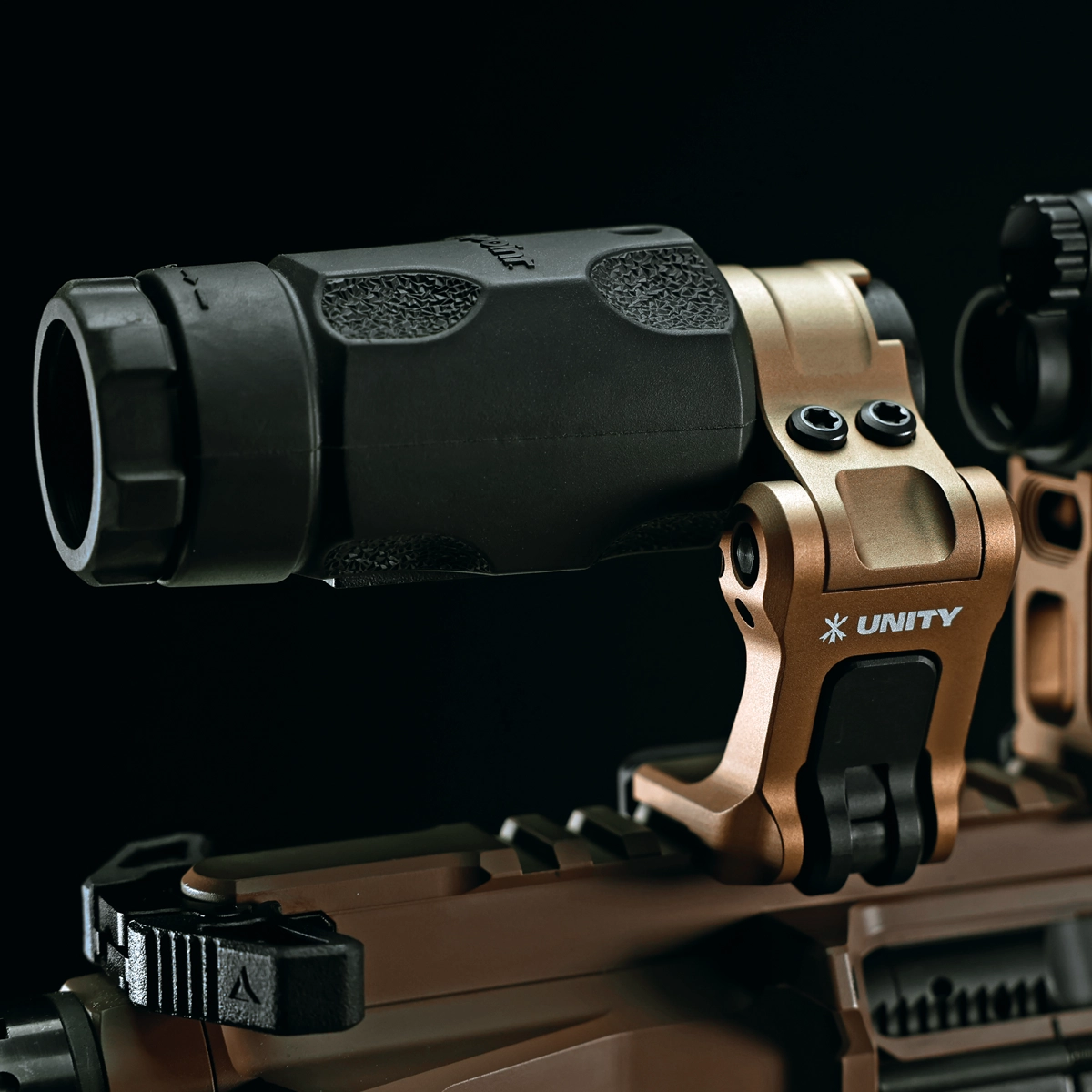

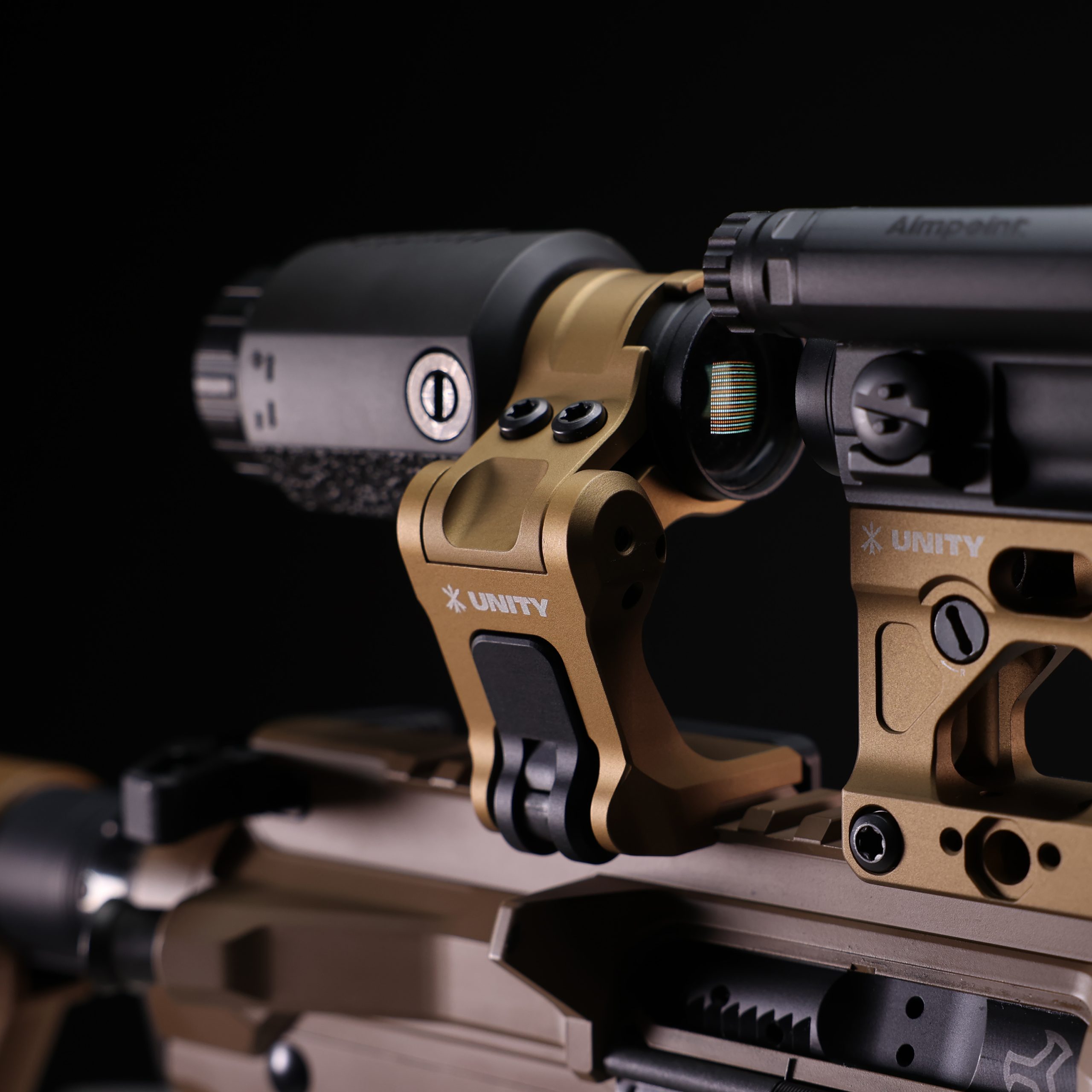

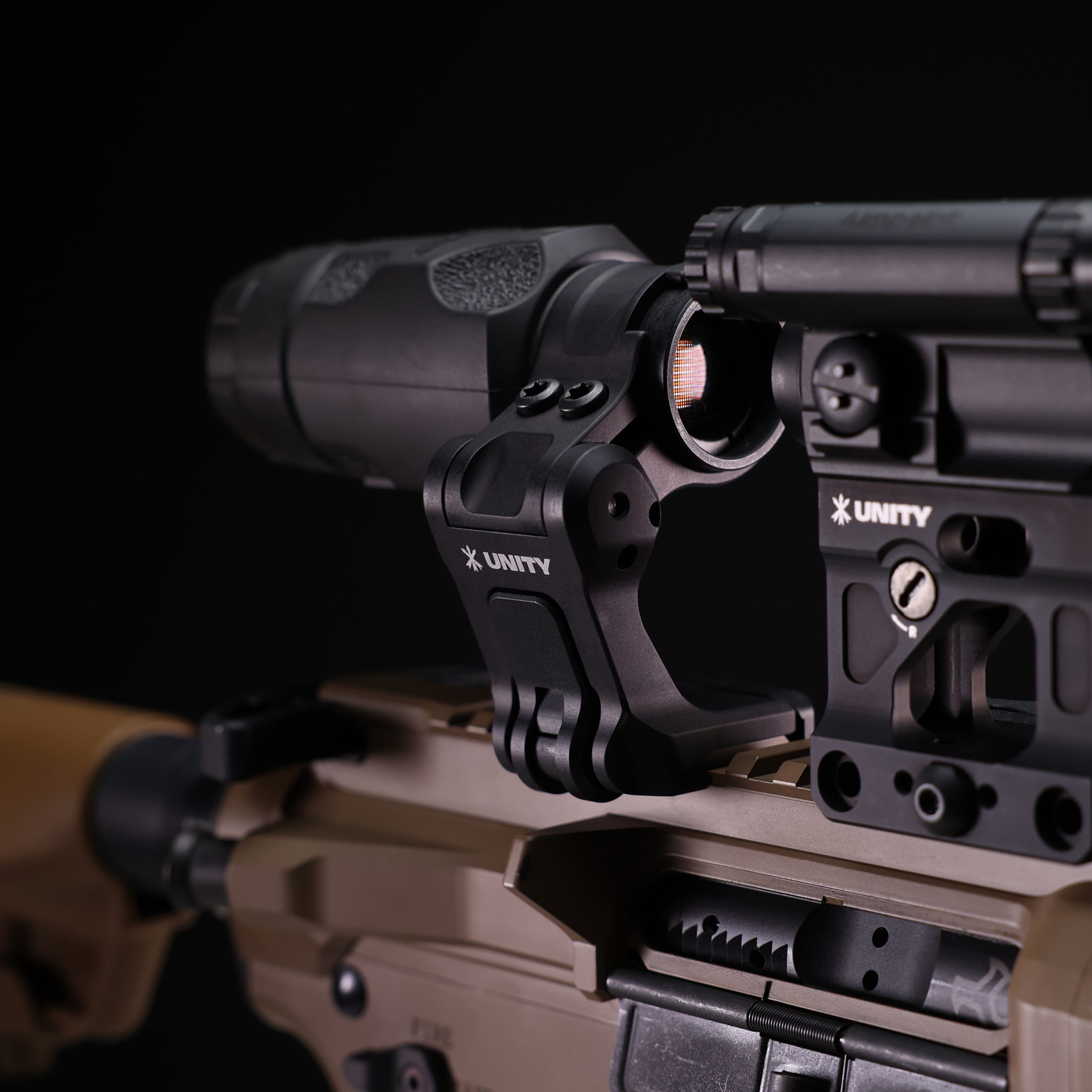

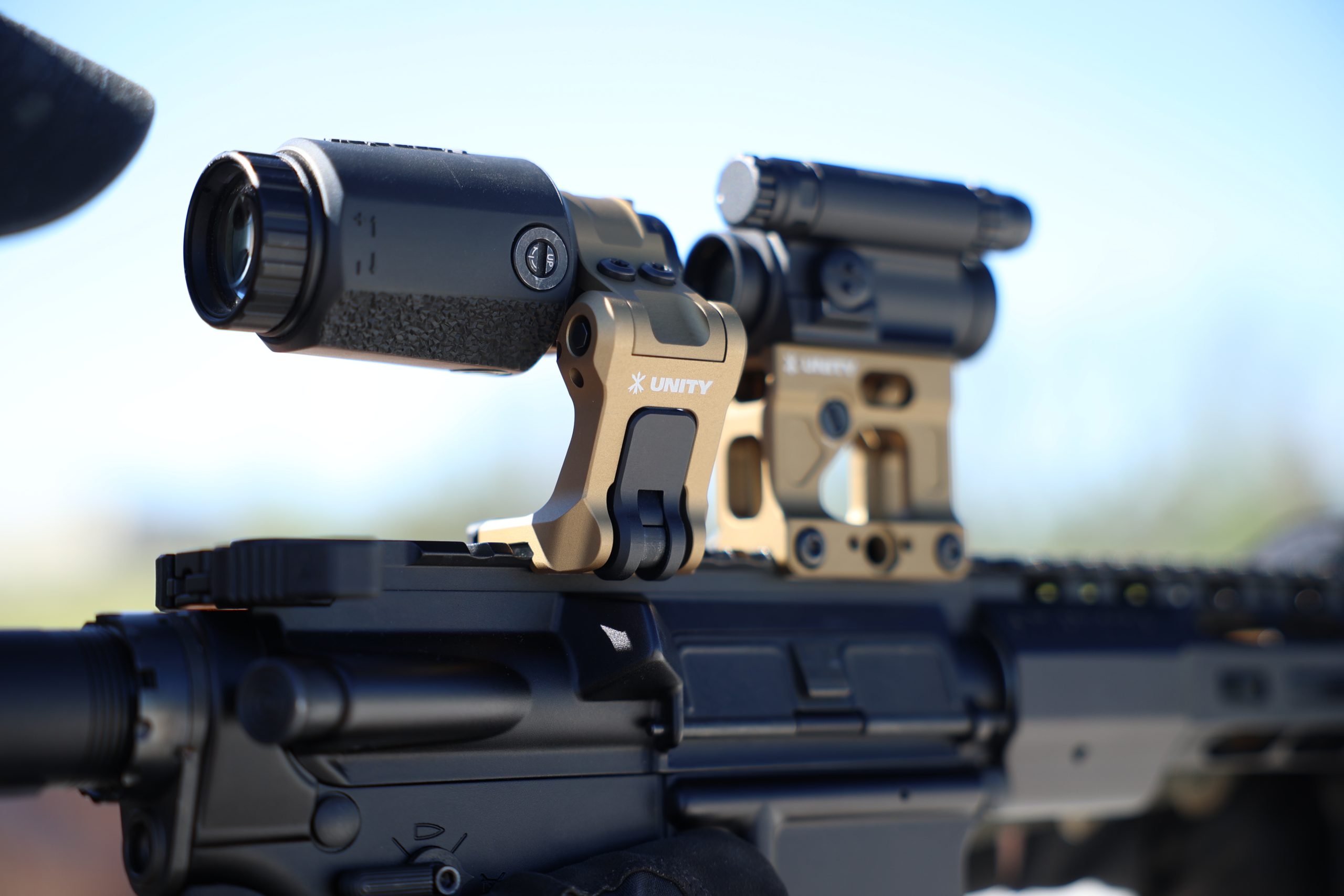

The FAST™ FTC 30mm magnifier mount employs a simple force-to-overcome mechanism, stowing the magnifier below the optical sight plane and completely within the footprint of the weapon’s receiver when not in use. UNITY™ Tactical’s FTC (flip-to-center) technology eliminates the flip-to-side placement of legacy products so users receive all the benefits of magnification when required with no snag hazards or occlusion of sight pictures when stowed. The FAST™ FTC 30mm is compatible with most magnifiers with a 30mm body and comes standard with a FAST™ QD Lever. It can be mounted in either direction on the rail, allowing left- or right-handed FTC motion and quick detach.

FAST™ is a series of optic mounting solutions that provides end users with a quicker sight picture than standard height mounts. FAST™ mounts create a 2.26” optical centerline from the rail, which allows for more rapid visual processing of the battlefield by ensuring an ergonomically correct heads-up posture. Further, they provide faster and easier dot/reticle acquisition while wearing night vision goggles, protective masks, plate carriers and other gear.

$265.00

SKU: FST-MAP Category: FAST™ Optic Mounts Tag: fast

Description

HEIGHT:

2.26″ to Optical Centerline

COMPATIBILITY:

Most 30mm Magnifiers

INTERFACE:

30mm Ring

MECHANISM:

Force-to-Overcome

MOUNT TYPE:

FAST™ QD Lever (Included)

DIMENSIONS (W X L X H):

IN: < 2.8 X 1.5 (Rail Coverage) OR 2.2 (With QD) X 3.3 (Raised) OR 2.3 (Stowed)
CM: < 7.1 X 3.8 (Rail Coverage) OR 5.6 (With QD) X 8.4 (Raised) OR 5.8 (Stowed)

WEIGHT:

OZ: <5.0
G: <141.7

MATERIAL:

7075-T6 Aluminum

COATING:

Type III Hardcoat Anodized

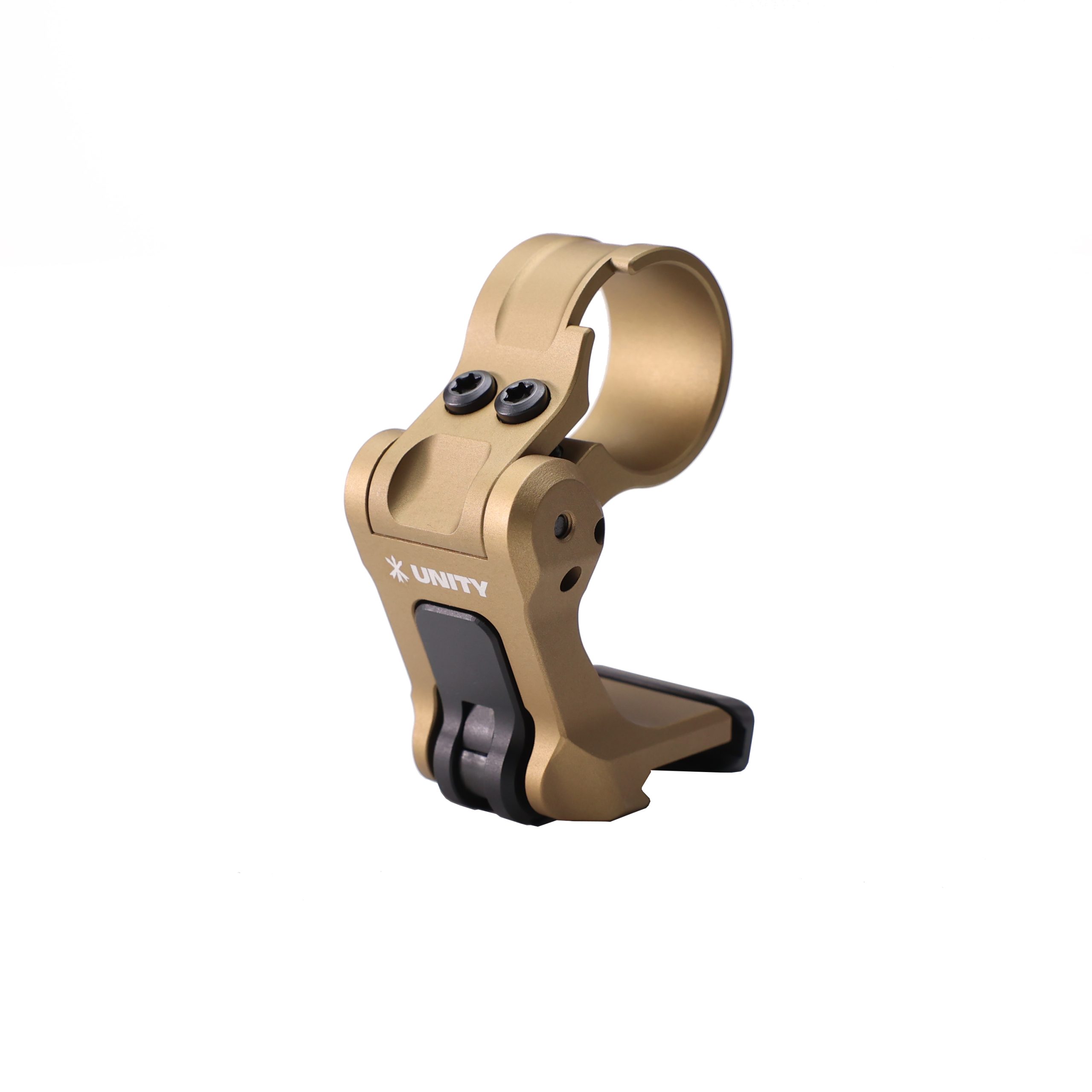

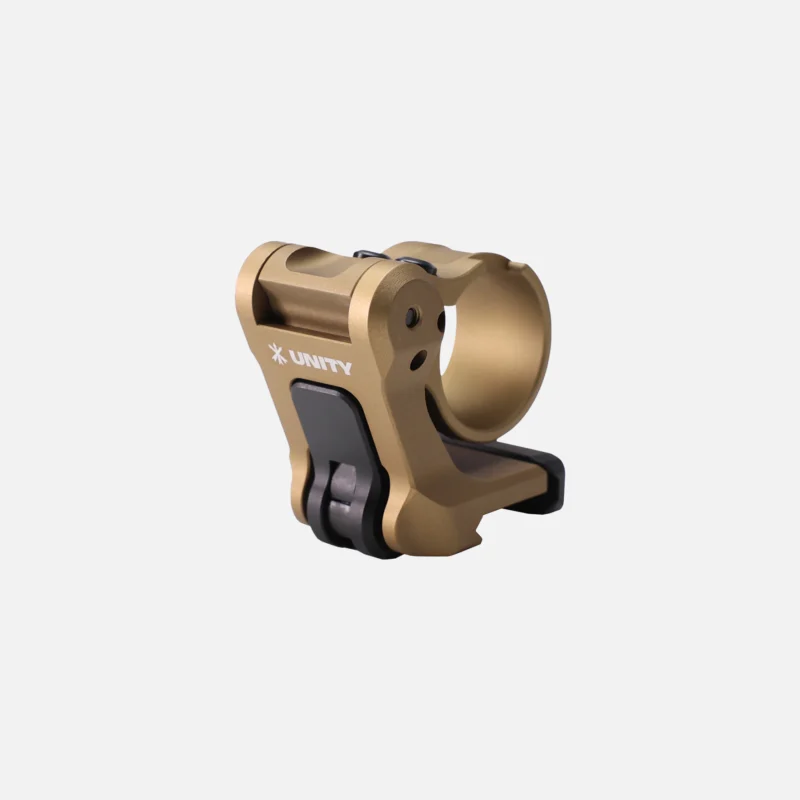

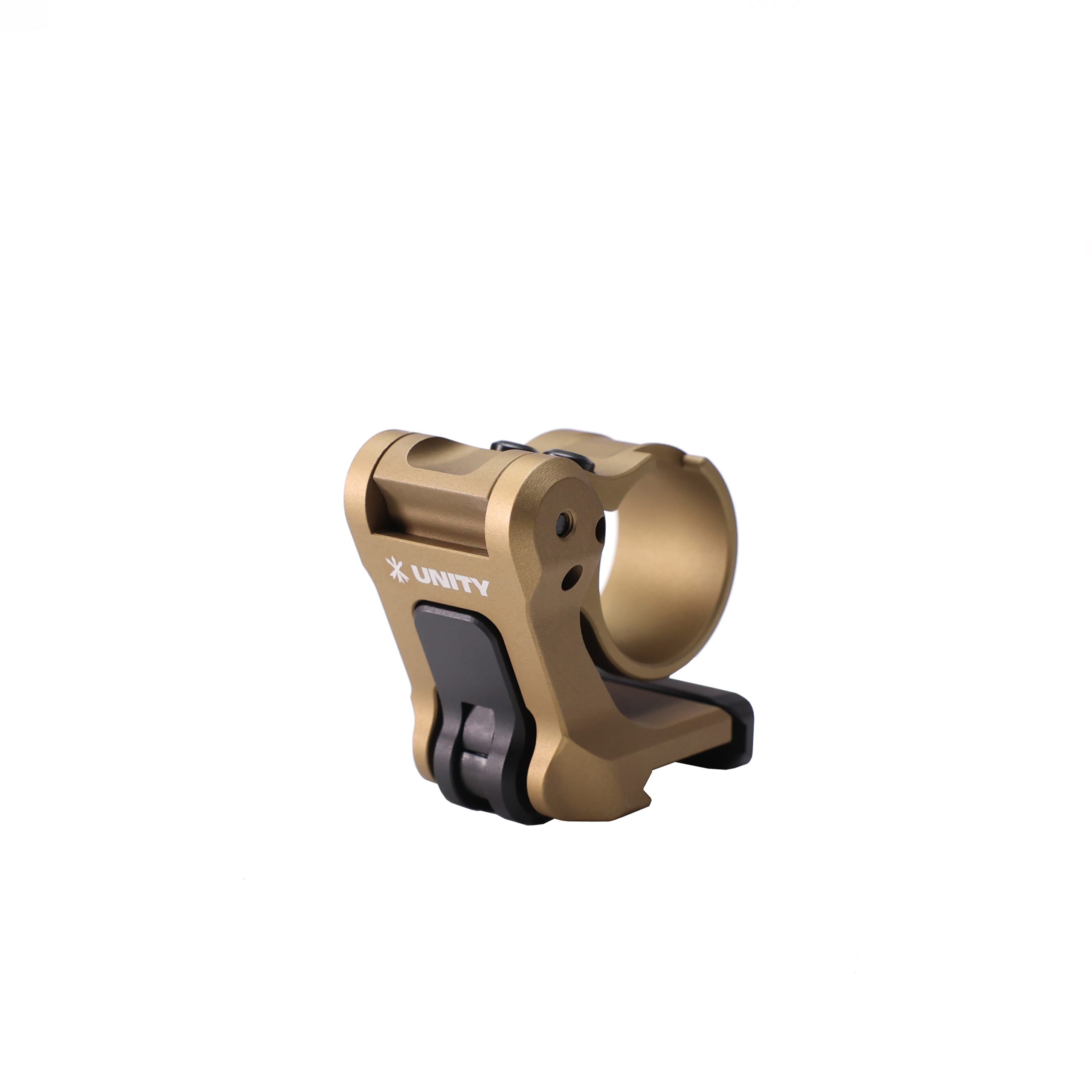

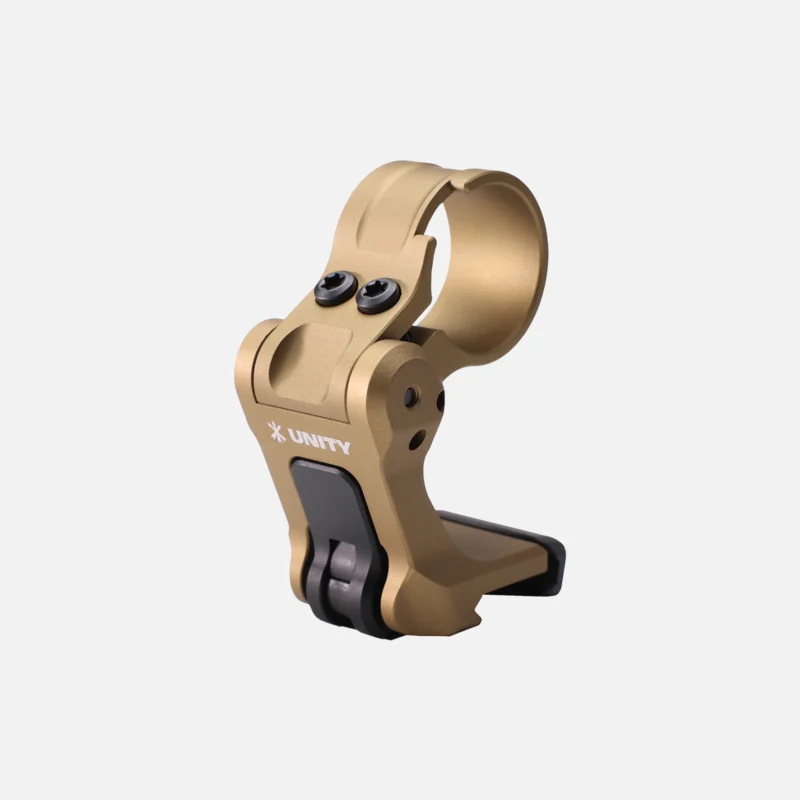

*NOTE: “FDE” is used throughout our catalog to reference a spectrum of colors that include tan, brown, bronze, earth, and everything in between. Due to the chemical process that takes place during Type III Hardcoat, the final finish can vary from part to part (even parts done in the same batch). Therefore, your “FDE” product may vary from other parts from UNITY and other companies, and may vary from the photos shown online.
